Shock-Proof Milling Cutter Series

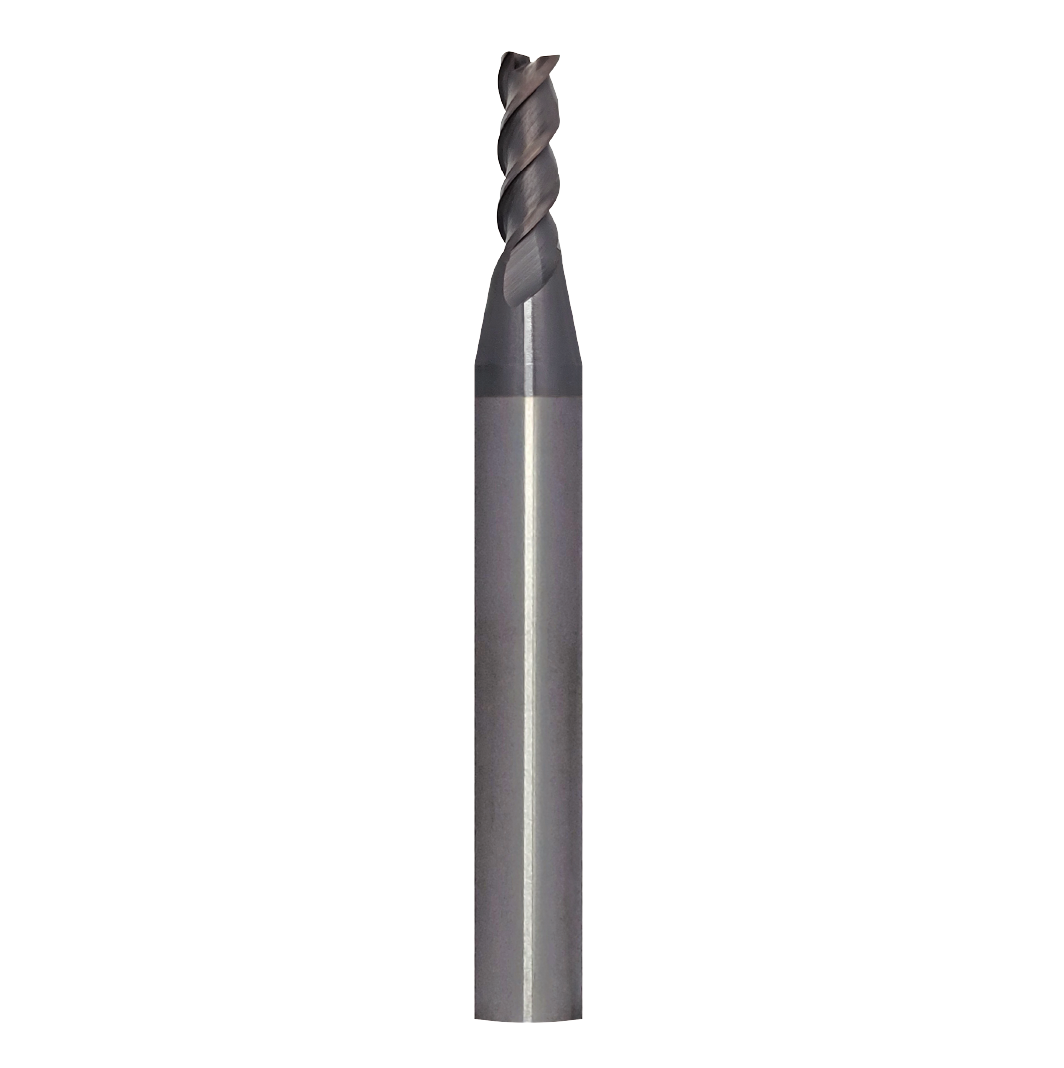

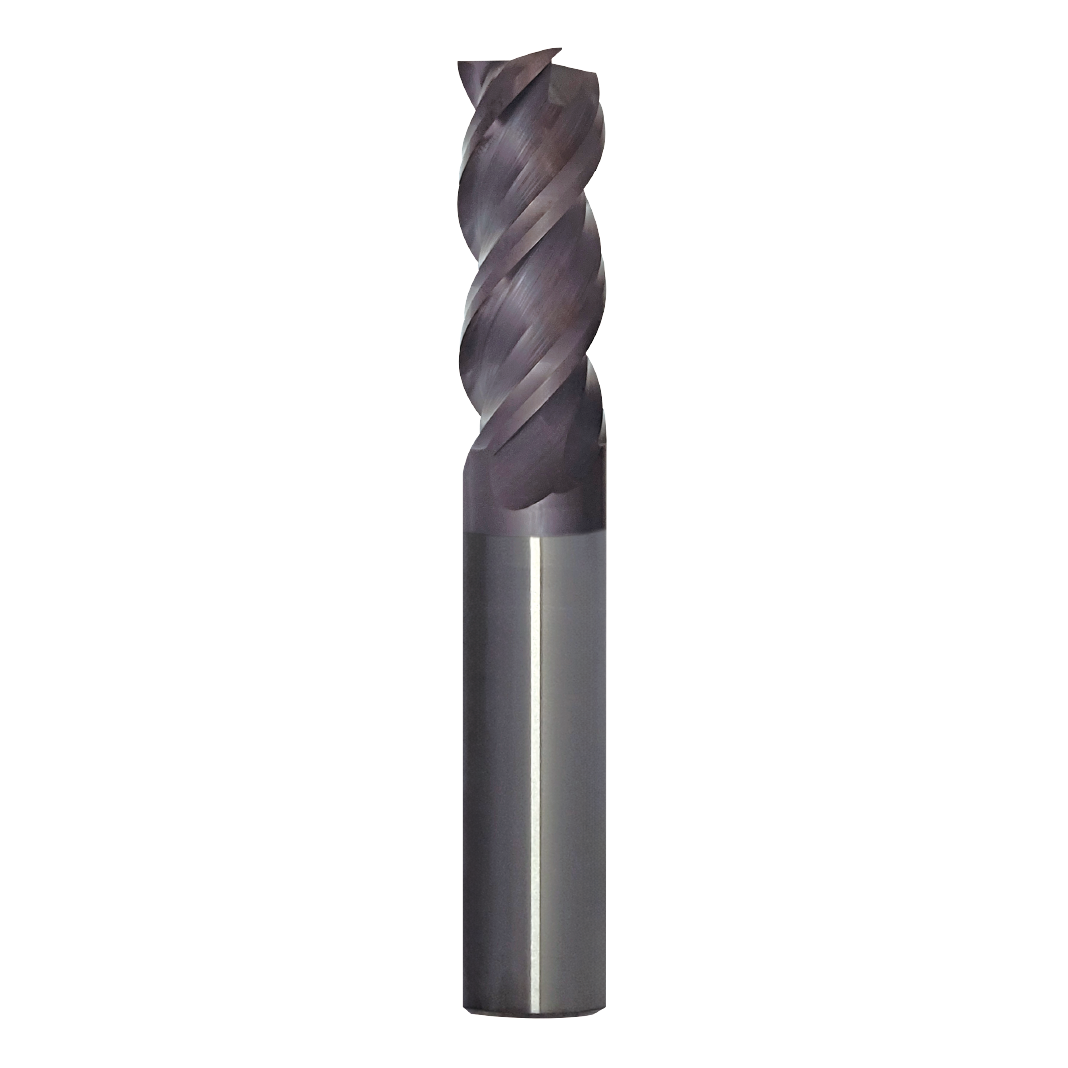

Model: 2 PE3 (Flat End Mill),3 Flutes
  • 2
  • SF
  • 45度
  • HRC52
  • Shank h5

Suitable for applications：

  • Stainless steel
  • Titanium alloy
  • Carbon steel
  • Alloy steel
  • HRC52 steel
Previous Back to list Next
  • 2 PE3 (Flat End Mill),3 Flutes
  • 2 PE3 (Flat End Mill),3 Flutes
  • 2 PE3 (Flat End Mill),3 Flutes
  • 2 PE3 (Flat End Mill),3 Flutes

Specification

Unit：mm

2 PE 0103SF 1 3 6 50
2 PE 0153SF 1.5 4 6 50
2 PE 0203SF 2 6 6 50
2 PE 0253SF 2.5 7 6 50
2 PE 0303SF 3 9 6 50
2 PE 0353SF 3.5 10 6 50
2 PE 0403SF 4 12 6 50
2 PE 0453SF 4.5 13 6 50
2 PE 0503SF 5 13 6 50
2 PE 0553SF 5.5 15 6 50
2 PE 0603SF 6 16 6 50
2 PE 0703SF 7 18 8 60
2 PE 0753SF 7.5 20 8 60
2 PE 0803SF 8 20 8 60
2 PE 0903SF 9 25 10 75
2 PE 1003SF 10 25 10 75
2 PE 1103SF 11 30 12 75
2 PE 1203SF 12 30 12 75
2 PE 1403SF 14 40 16 100
2 PE 1603SF 16 45 16 100
Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price

Remarks: For other specifications, please call to inquire
