Shock-Proof Milling Cutter Series

Model: CED (Highly Efficient Operation),4 Flutes
  • C
  • GR
  • 35
  • Shank h5

Special R & D design has stable cutting performance, reduce cutting resistance, shock resistance, and can have superior loss resistance and stability.

Suitable for applications：

  • Titanium alloy
  • Stainless steel
  • Alloy steel
  • Heat-resistant alloy steel
  • Die steel
  • General steel
  • Copper and aluminum
  • Alloy rough
  • Washing
Previous Back to list Next
  • CED (Highly Efficient Operation),4 Flutes
  • CED (Highly Efficient Operation),4 Flutes
  • CED (Highly Efficient Operation),4 Flutes

Specification

Unit：mm

CED 0104GR 1 3 4 50
CED 0154GR 1.5 4.5 4 50
CED 0204GR 2 6 4 50
CED 0254GR 2.5 8 4 50
CED 0304GR 3 9 4 50
CED 0304GRD6 3 9 6 50
CED 0404GR 4 12 4 50
CED 0404GRD6 4 12 6 50
CED 0504GR 5 15 6 50
CED 0604GR 6 18 6 50
CED 0804GR 8 24 8 60
CED 1004GR 10 30 10 75
CED 1204GR 12 36 12 75
CED 1604GR 16 50 16 100
CED 2004GR 20 50 20 100

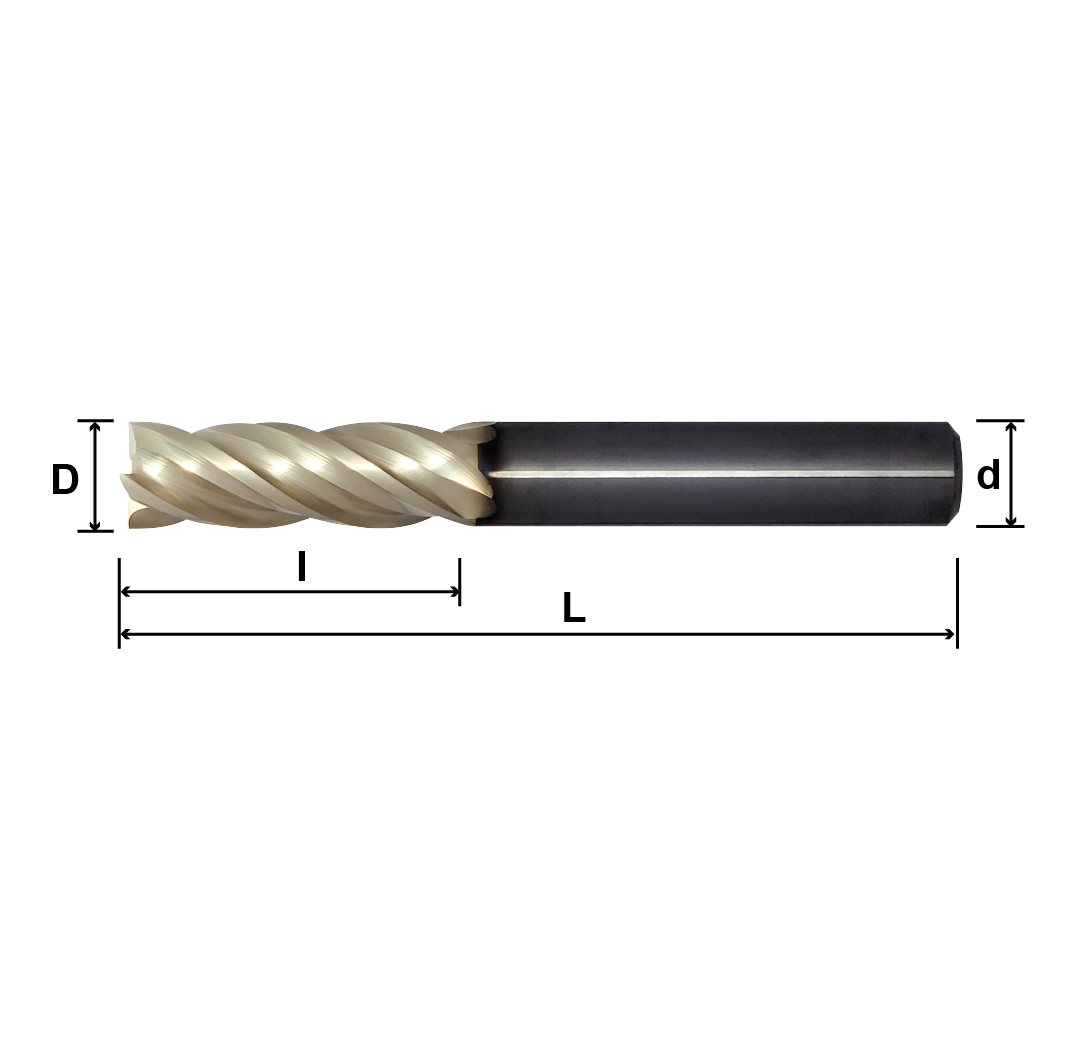

Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price

Remarks: For other specifications, please call to inquire
