5#Dedicated to Mold Processing

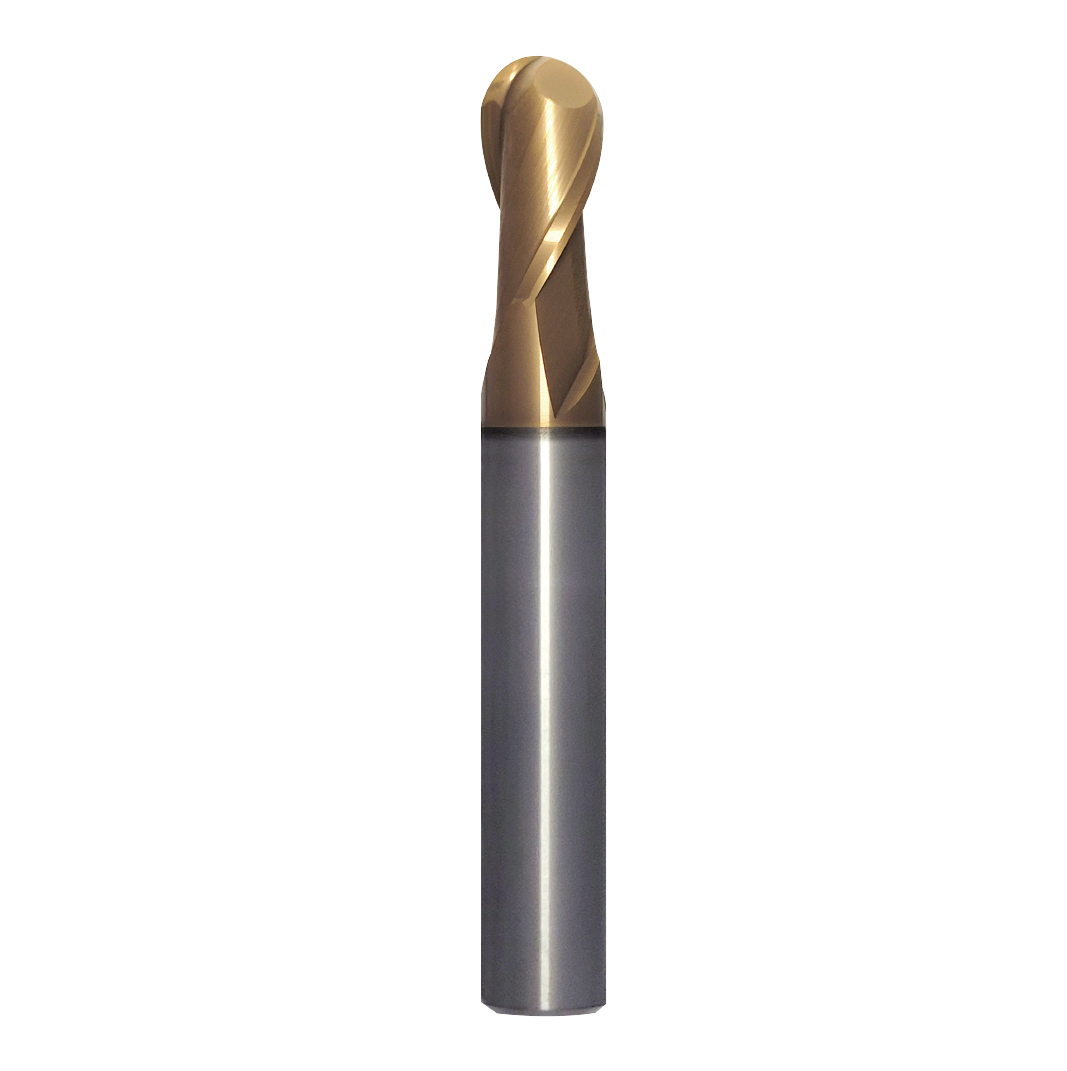

Model: 5 MSB2/SB2 (Ball Nose), 2 Flutes
  • 5
  • TX
  • 30度
  • HRC55
  • Shank h5

Can be machining of the surface milling, R groove and profile milling.

Suitable for applications：

  • Alloy steel
  • Die steel ~ HRC55 steel
Previous Back to list Next
  • 5 MSB2/SB2 (Ball Nose), 2 Flutes
  • 5 MSB2/SB2 (Ball Nose), 2 Flutes
  • 5 MSB2/SB2 (Ball Nose), 2 Flutes

Specification

Unit：mm

5 MSB 0102TX 0.5R 1 2 4 50
5 SB 0102TX 0.5R 1 2 6 50
5 MSB 0152TX 0.75R 1.5 3 4 50
5 SB 0152TX 0.75R 1.5 3 6 50
5 MSB 0202TX 1R 2 4 4 50
5 SB 0202TX 1R 2 4 6 50
5 MSB 0252TX 1.25R 2.5 5 4 50
5 SB 0252TX 1.25R 2.5 5 6 50
5 SSB 0302TX 1.5R 3 6 3 50
5 MSB 0302TX 1.5R 3 6 4 50
5 SB 0302TX 1.5R 3 6 6 50
5 MSB 0352TX 1.75R 3.5 7 4 50
5 MSB 0402TX 2R 4 8 4 50
5 SB 0402TX 2R 4 8 6 50
5 SB 0452TX 2.25R 4.5 9 6 50
5 SB 0502TX 2.5R 5 10 6 50
5 SB 0602TX 3R 6 12 6 50
5 SB 0702TX 3.5R 7 14 8 60
5 SB 0802TX 4R 8 16 8 60
5 SB 0902TX 4.5R 9 18 10 75
5 SB 1002TX 5R 10 20 10 75
5 SB 1102TX 5.5R 11 22 12 75
5 SB 1202TX 6R 12 24 12 75
5 SB 1602TX 8R 16 32 16 100
5 SB 2002TX 10R 20 40 20 100

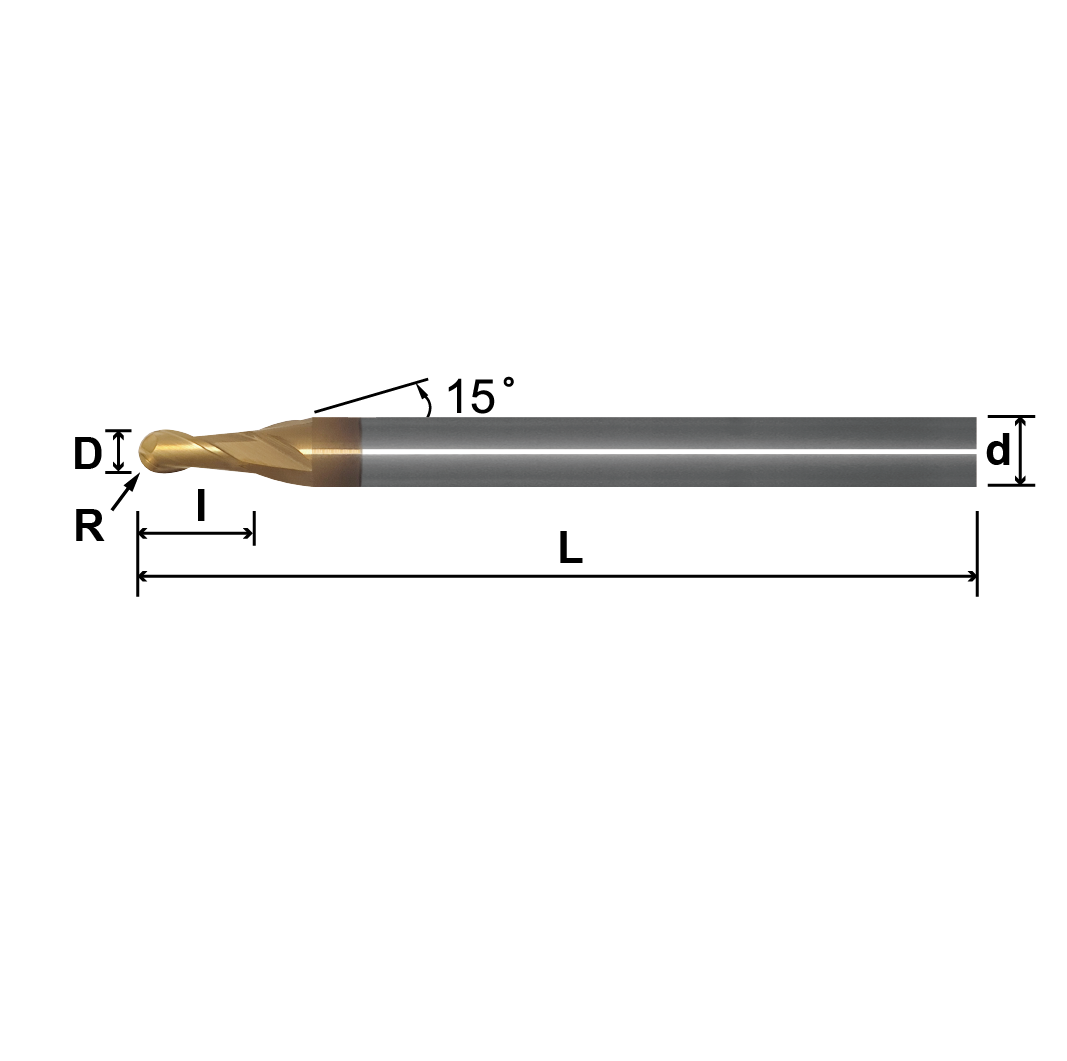

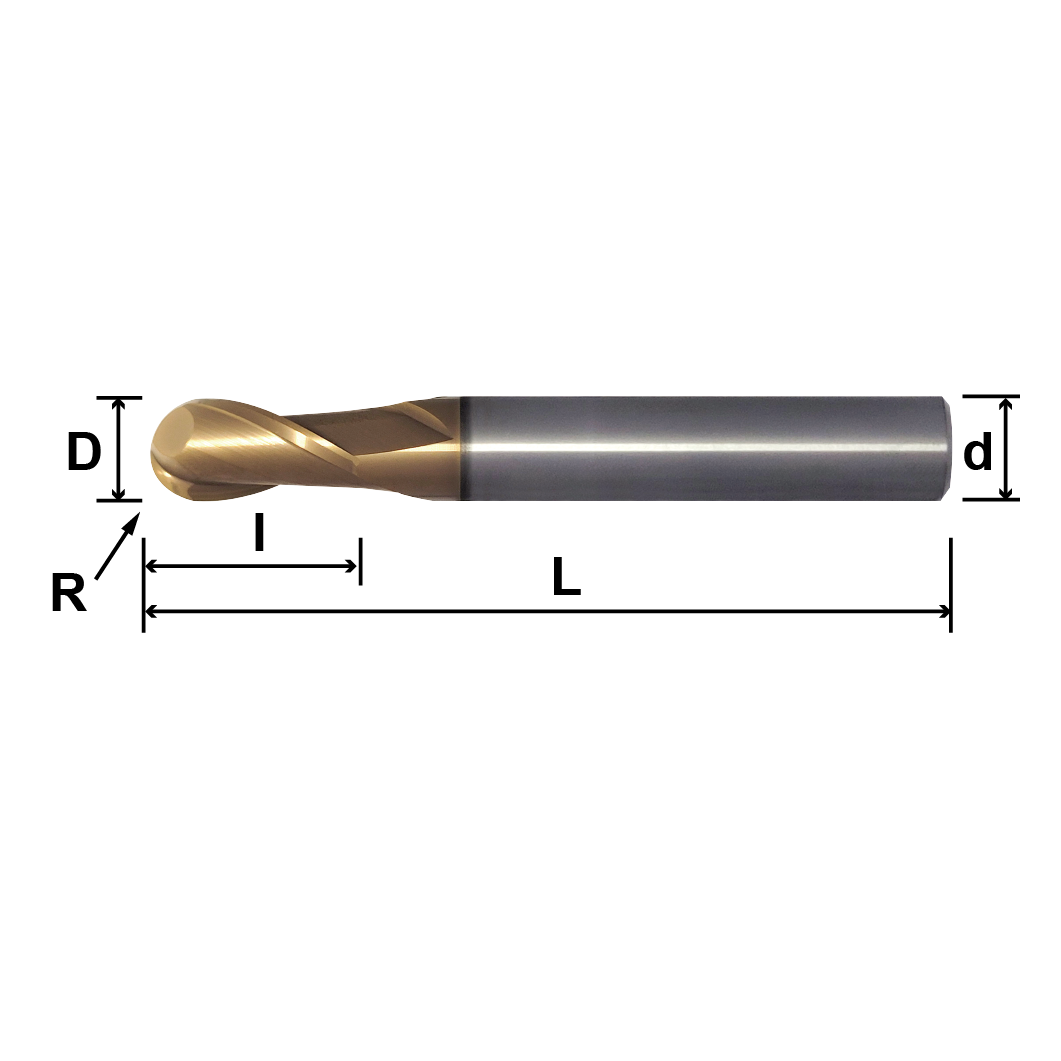

Model No. Radius R Diameter D Flute Length I Shank Diameter d Overall Length L price

Remarks: For other specifications, please call to inquire
