638#Heat Treatment is Dry for Use

Model: 638 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 638
  • NB
  • 35
  • HRC65
  • Shank h5

Specially designed for HRC45-68 workpiece processing with high heat resistance and high attrition resistance coating NB, even hard to processing, also can be easily to completed.
Can be machining of surface milling, R groove milling and profile milling.

Suitable for applications：

  • Alloy steel
  • Die steel HRC45~HRC68
Previous Back to list
  • 638 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 638 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 638 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 638 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes

Specification

Unit：mm

638 SLB 0102NB 0.5R 1 2 4 75
638 SLB 0102NB 0.5R 1 2 6 75
638 MLB 0102NB 0.5R 1 2 4 100
638 MLB 0102NB 0.5R 1 2 6 100
638 SLB 0152NB 0.75R 1.5 3 4 75
638 SLB 0152NB 0.75R 1.5 3 6 75
638 MLB 0152NB 0.75R 1.5 3 4 100
638 MLB 0152NB 0.75R 1.5 3 6 100
638 SLB 0202NB 1R 2 4 4 75
638 SLB 0202NBD6 1R 2 4 6 75
638 MLB 0202NB 1R 2 4 4 100
638 MLB 0202NBD6 1R 2 4 6 100
638 SLB 0252NB 1.25R 2.5 5 4 75
638 SLB 0252NBD6 1.25R 2.5 5 6 75
638 MLB 0252NB 1.25R 2.5 5 4 100
638 MLB 0252NBD6 1.25R 2.5 5 6 100
638 SLB 0302NBD3 1.5R 3 6 3 75
638 SLB 0302NB 1.5R 3 6 4 75
638 SLB 0302NBD6 1.5R 3 6 6 75
638 MLB 0302NBD3 1.5R 3 6 3 100
638 MLB 0302NB 1.5R 3 6 4 100
638 MLB 0302NBD6 1.5R 3 6 6 100
638 SLB 0402NB 2R 4 8 4 75
638 SLB 0402NBD6 2R 4 8 6 75
638 MLB 0402NB 2R 4 8 4 100
638 MLB 0402NBD6 2R 4 8 6 100
638 SLB 0502NB 2.5R 5 10 6 75
638 MLB 0502NB 2.5R 5 10 6 100
638 SLB 0602NB 3R 6 12 6 75
638 MLB 0602NB 3R 6 12 6 100
638 SLB 0802NB 4R 8 16 8 75
638 MLB 0802NB 4R 8 16 8 100
638 LLB 0802NB 4R 8 16 8 150
638 MLB 1002NB 5R 10 20 10 100
638 LLB 1002NB 5R 10 20 10 150
638 MLB 1202NB 6R 12 24 12 100
638 LLB 1202NB 6R 12 24 12 150
638 MLB 1602NB 8R 16 32 16 150
638 LLB 1602NB 8R 16 32 16 200
638 MLB 2002NB 10R 20 40 20 150
638 LLB 2002NB 10R 20 40 20 200

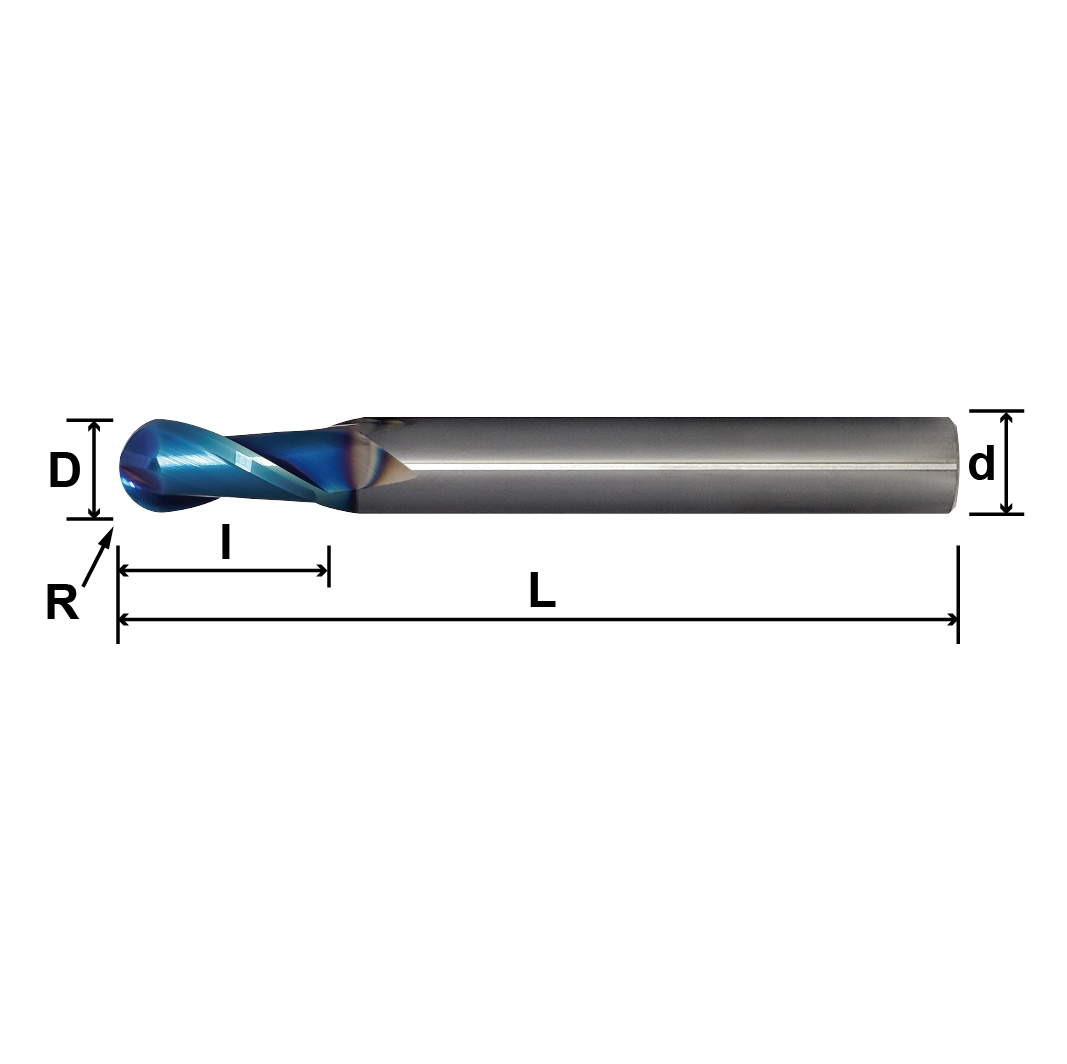

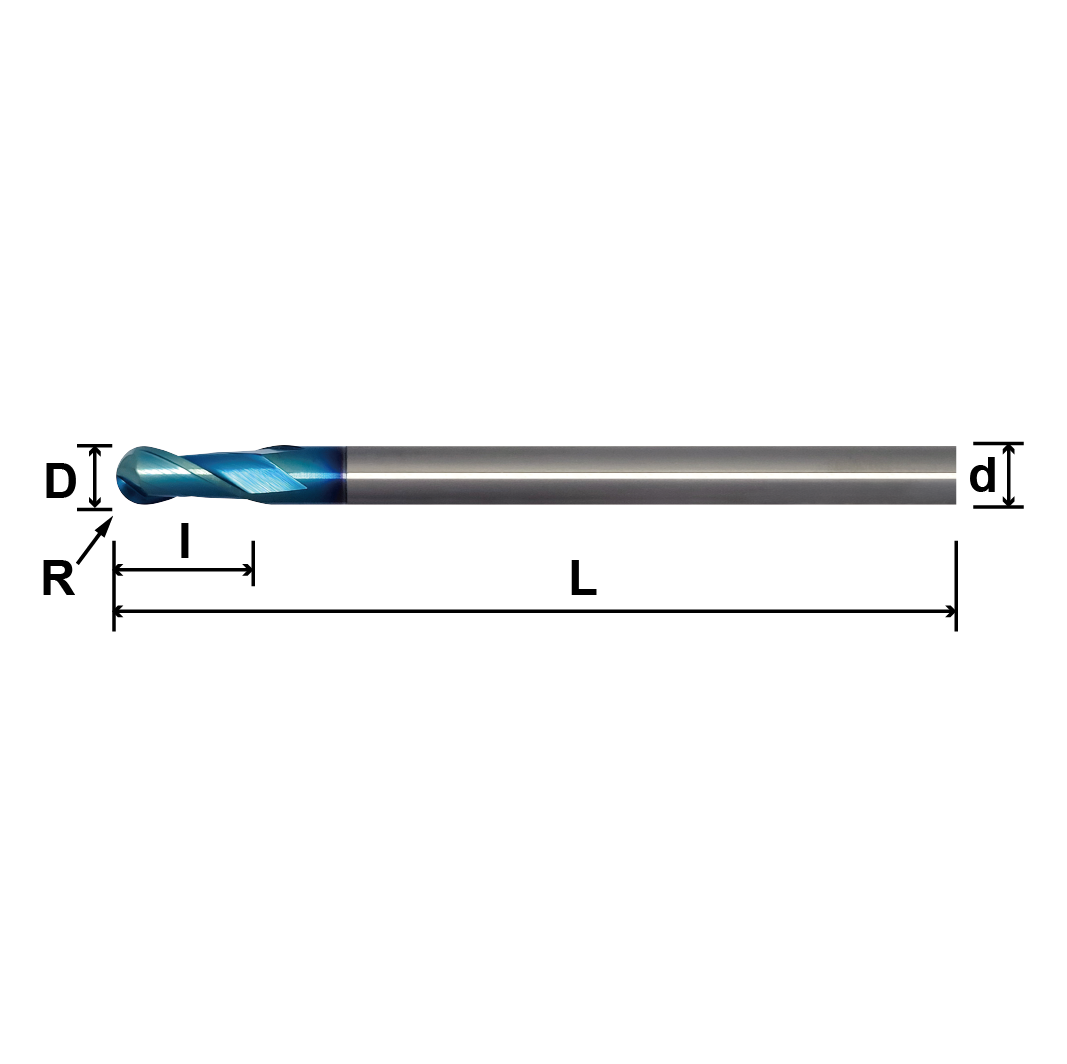

Model No. Radius R Diameter D Flute Length I Shank Diameter d Overall Length L price

Remarks: For other specifications, please call to inquire
