Tungsten Carbide Slope Mill

Model: 5 TTA Tungsten Carbide Taper End Mills-2/4 Flutes
  • 5
  • TX
  • OL
  • HRC55
  • Shank h5

Smooth chip removal, high precision and good durability.
Face milling, R angle grooving, R angle side milling, right angle drilling, slope milling, R angle drilling.
Suitable for stainless steel, die steel, general steel.
Angle 0.5°~10°

Suitable for applications：

  • General steel
  • Stainless steel
  • Die steel
Previous Back to list
  • 5 TTA Tungsten Carbide Taper End Mills-2 / 4 Flutes
  • 5 TTA Tungsten Carbide Taper End Mills-2 / 4 Flutes

Specification

Unit: mm

5 TTA 0050102OL 0.5 1° 2 2 4 50
5 TTA 0050252OL 0.5 2.5° 2 2 4 50
5 TTA 0050702OL 0.5 7° 2 2 4 50
5 TTA 0051002OL 0.5 10° 2 2 4 50
5 TTA 0080052OL 0.8 0.5° 3 2 4 50
5 TTA 0080102OL 0.8 1° 3 2 4 50
5 TTA 0080152OL 0.8 1.5° 3 2 4 50
5 TTA 0080202OL 0.8 2° 3 2 4 50
5 TTA 0080252OL 0.8 2.5° 3 2 4 50
5 TTA 0080302OL 0.8 3° 3 2 4 50
5 TTA 0080502OL 0.8 5° 3 2 4 50
5 TTA 0080702OL 0.8 7° 3 2 4 50
5 TTA 0081002OL 0.8 10° 3 2 4 50
5 TTA 0100052TX 1 0.5° 4 2 4 50
5 TTA 0100102TX 1 1° 4 2 4 50
5 TTA 0100152TX 1 1.5° 4 2 4 50
5 TTA 0100202TX 1 2° 4 2 4 50
5 TTA 0100302TX 1 3° 4 2 4 50
5 TTA 0100502TX 1 5° 4 2 4 50
5 TTA 0100702TX 1 7° 4 2 4 50
5 TTA 0101402TX 1 14° 4 2 4 50
5 TTA 0101502TX 1 15° 4 2 4 50
5 TTA 0150052TX 1.5 0.5° 5 2 4 50
5 TTA 0150102TX 1.5 1° 5 2 4 50
5 TTA 0150152TX 1.5 1.5° 5 2 4 50
5 TTA 0150202TX 1.5 2° 5 2 4 50
5 TTA 0150302TX 1.5 3° 5 2 4 50
5 TTA 0150502TX 1.5 5° 5 2 4 50
5 TTA 0150702TX 1.5 7° 5 2 4 50
5 TTA 0151002TX 1.5 10° 5 2 4 50
5 TTA 0152002TXD6 1.5 20° 6.18 2 6 50
5 TTA 0200052TX 2 0.5° 6 2 4 50
5 TTA 0200102TX 2 1° 6 2 4 50
5 TTA 0200152TX 2 1.5° 6 2 4 50
5 TTA 0200202TX 2 2° 6 2 4 50
5 TTA 0200302TX 2 3° 6 2 4 50
5 TTA 0200502TX 2 5° 6 2 4 50
5 TTA 0200702TX 2 7° 6 2 4 50
5 TTA 0201002TX 2 10° 6 2 4 50
5 TTA 0201502TXD6 2 15° 6 2 6 50
5 TTA 0250052TX 2.5 0.5° 8 2 4 50
5 TTA 0250102TX 2.5 1° 8 2 4 50
5 TTA 0250152TX 2.5 1.5° 8 2 4 50
5 TTA 0250202TX 2.5 2° 8 2 4 50
5 TTA 0250252TX 2.5 2.5° 8 2 4 50
5 TTA 0250302TX 2.5 3° 8 2 4 50
5 TTA 0250502TXD6 2.5 5° 8 2 6 50
5 TTA 0250702TXD6 2.5 7° 8 2 6 50
5 TTA 0251002TXD6 2.5 10° 8 2 6 50
5 TTA 0300054TX 3 0.5° 10 4 6 50
5 TTA 0300104TX 3 1° 10 4 6 50
5 TTA 0300154TX 3 1.5° 10 4 6 50
5 TTA 0300204TX 3 2° 10 4 6 50
5 TTA 0300254TX 3 2.5° 10 4 6 50
5 TTA 0300304TX 3 3° 10 4 6 50
5 TTA 0300504TX 3 5° 10 4 6 50
5 TTA 0300704TX 3 7° 10 4 6 50
5 TTA 0400054TX 4 0.5° 15 4 6 50
5 TTA 0400104TX 4 1° 15 4 6 50
5 TTA 0400154TX 4 1.5° 15 4 6 50
5 TTA 0400204TX 4 2° 15 4 6 50
5 TTA 0400254TX 4 2.5° 15 4 6 50
5 TTA 0400304TX 4 3° 15 4 6 50
5 TTA 0400504TXD8 4 5° 15 4 8 60
5 TTA 0400504TX 4 5° 15 4 6 50
5 TTA 0400604TX 4 6° 15 4 6 50
5 TTA 0400702TXD8 4 7° 15 4 8 60
5 TTA 0500104TX 5 1° 20 4 6 60
5 TTA 0500154TX 5 1.5° 20 4 8 60
5 TTA 0500204TX 5 2° 20 4 8 60
5 TTA 0500254TX 5 2.5° 20 4 8 60
5 TTA 0500304TX 5 3° 20 4 8 60
5 TTA 0500504TX 5 5° 20 4 8 60
5 TTA 0600054TX 6 0.5° 20 4 8 60
5 TTA 0600154TX 6 1.5° 20 4 8 60
5 TTA 0600204TX 6 2° 20 4 8 60
5 TTA 0600254TX 6 2.5° 20 4 8 60
5 TTA 0600304TX 6 3° 20 4 8 60
5 TTA 0600504TX 6 5° 20 4 10 75

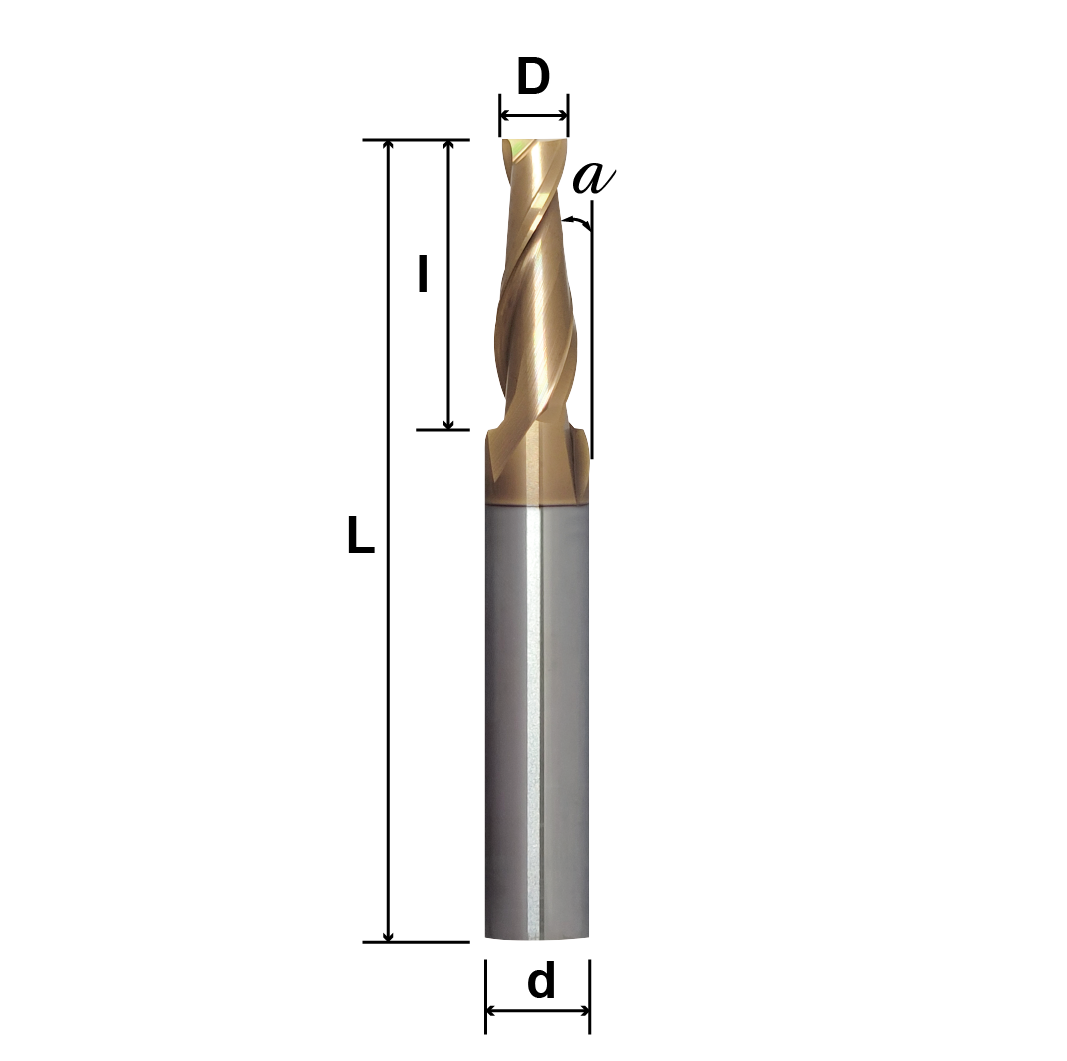

Model No. Diameter D Top Degree α Flute Length I Flute T Shank Diameter d Overall Length L price

Remarks: For other specifications, please call to inquire
