Tungsten Steel Tool Head for the Lock Tooth

Model: 2D TMSB (Compound Lathe Ball Nose End Mill),2 Flutes
  • 2D
  • 5
  • R7
  • 30度
  • Shank h5

Suitable for applications：

  • Stainless steel
  • Heat-resistant alloy
  • Titanium alloy
  • General steel
Previous Back to list Next
  • 2D TMSB (Compound Lathe Ball Nose End Mill),2 Flutes
  • 2D TMSB (Compound Lathe Ball Nose End Mill),2 Flutes

Specification

Unit: mm

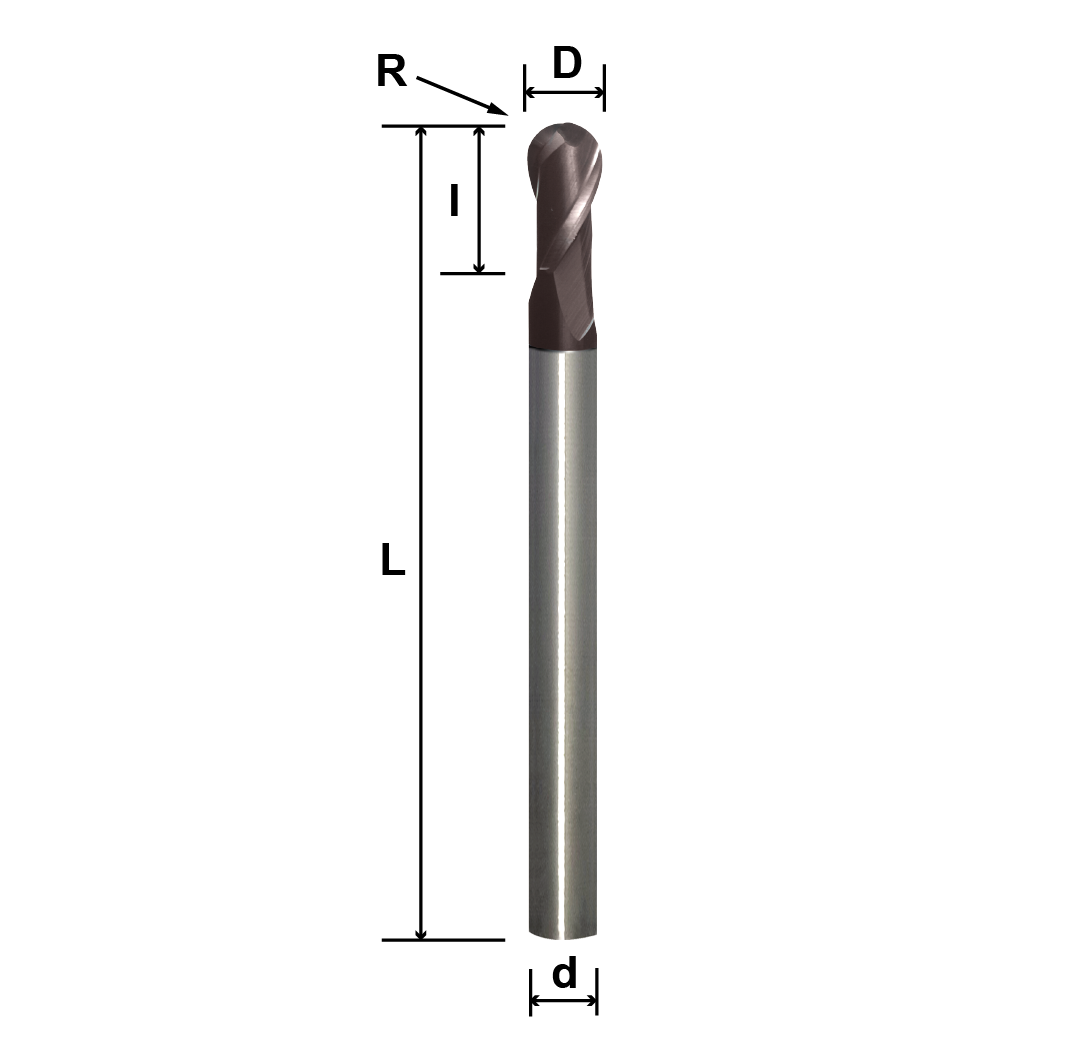

Model No. Radius R Diameter D Flute Length I Shank Diameter d Overall Length L price
2D TMSB 0102R7 0.5R 1 1.5 6 50
2D TMSB 0152R7 0.75R 1.5 2.5 6 50
2D TMSB 0202R7 1R 2 3 6 50
2D TMSB 0302R7 1.5R 3 4.5 6 50
2D TMSB 0402R7 2R 4 6 6 50
2D TMSB 0502R7 2.5R 5 8 6 50
2D TMSB 0602R7 3R 6 9 6 50
2D TMSB 0802R7 4R 8 12 8 50
2D TMSB 1002R7 5R 10 15 10 50
2D TMSB 1202R7 6R 12 18 12 60
2D TMSB 1602R7 8R 16 24 12 60

Remarks: For other specifications, please call to inquire
