Tungsten Carbide Thread Milling Tools (Internal/External)
Model: VUAWith high processing efficiency, high surface quality, and high dimensional accuracy, also suited for high-speed processing.
Specification
Unit: mm
| 5 VUA 014UN72TX | 1-72UNF | 72 | 1.4 | 3.8 | 3 | 4 | 50 | ||
| 5 VUA 014UN64TX | 1-64UNC | 2-64UNF | 64 | 1.4 | 3.9 | 3 | 4 | 50 | |
| 5 VUA 016UN56TX | 2-56UNC | 3-56UNF | 56 | 1.6 | 4.6 | 3 | 4 | 50 | |
| 5 VUA 019UN48TX | 3-48UNC | 4-48UNF | 48 | 1.9 | 5.4 | 3 | 4 | 50 | |
| 5 VUA 021UN40TX | 4-40UNC | 40 | 2.1 | 6.2 | 3 | 4 | 50 | ||
| 5 VUA 024UN40TX | 5-40UNC | 6-40UNF | 40 | 2.4 | 7.1 | 3 | 4 | 50 | |
| 5 VUA 033UN36TX | 8-36UNF | 36 | 3.3 | 8.8 | 3 | 4 | 50 | ||
| 5 VUA 026UN32TX | 6-32UNC | 32 | 2.6 | 7.3 | 3 | 4 | 50 | ||
| 5 VUA 032UN32TX | 8-32UNC | 10-32UNF | 32 | 3.2 | 10.1 | 3 | 6 | 60 | |
| 5 VUA 052UN28TX | 1/4-28UNF | 28 | 5.2 | 14 | 3 | 6 | 60 | ||
| 5 VUA 036UN24TX | 10-24UNC | 24 | 3.6 | 10.4 | 3 | 6 | 60 | ||
| 5 VUA 048UN20TX | 1/4-20UNC | 7/16-20UNF | 20 | 4.8 | 13.7 | 3 | 6 | 60 | |
| 5 VUA 060UN18TX | 5/16-18UNC | 18 | 6.0 | 16.5 | 3 | 6 | 60 | ||

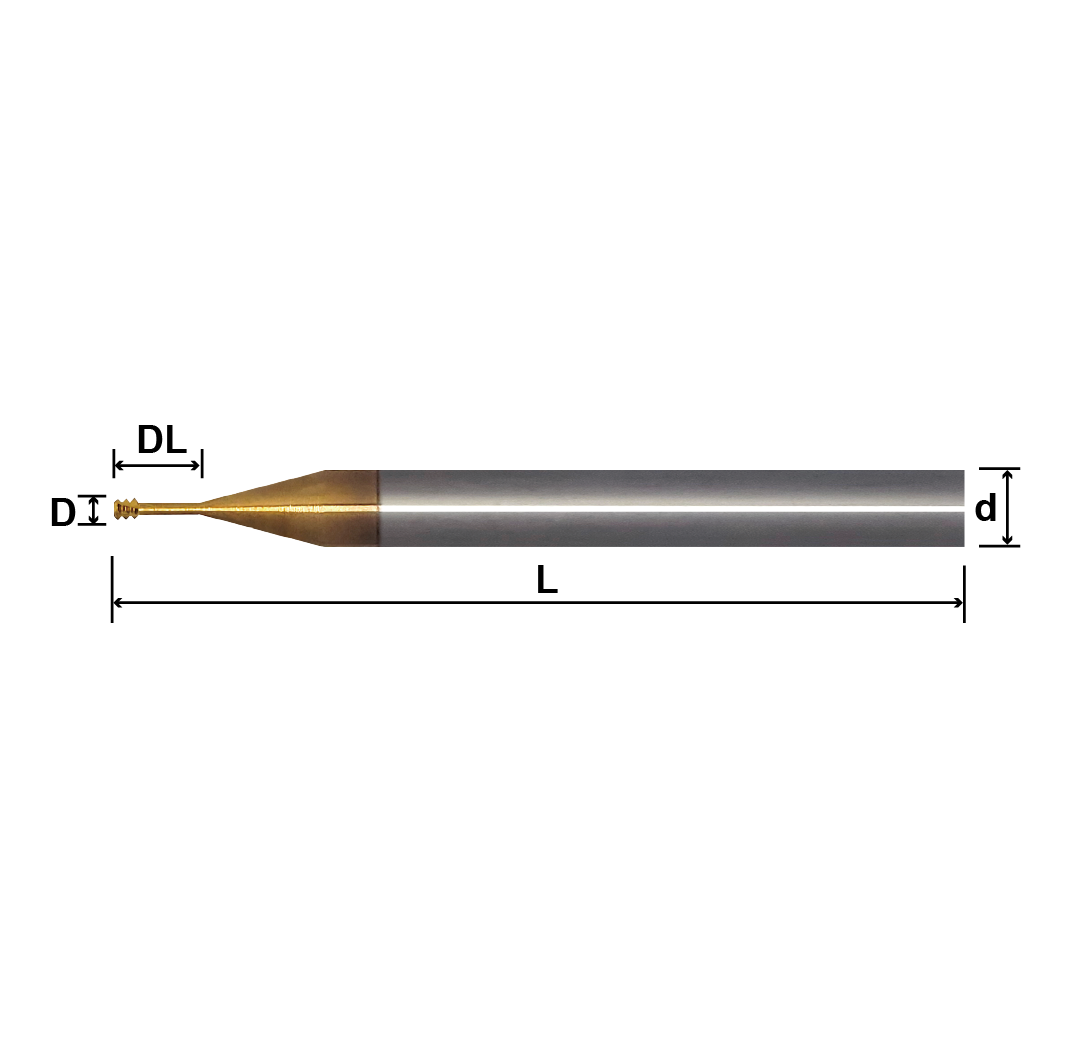

| Model No. | Thread Size | MM Pitch |
D Diameter |
DL Effective Length |
T Flute |
d Shank Diameter |
L Overall Length |
price | |
|---|---|---|---|---|---|---|---|---|---|
| UNC | UNF | ||||||||
Remarks: For other specifications, please call to inquire
