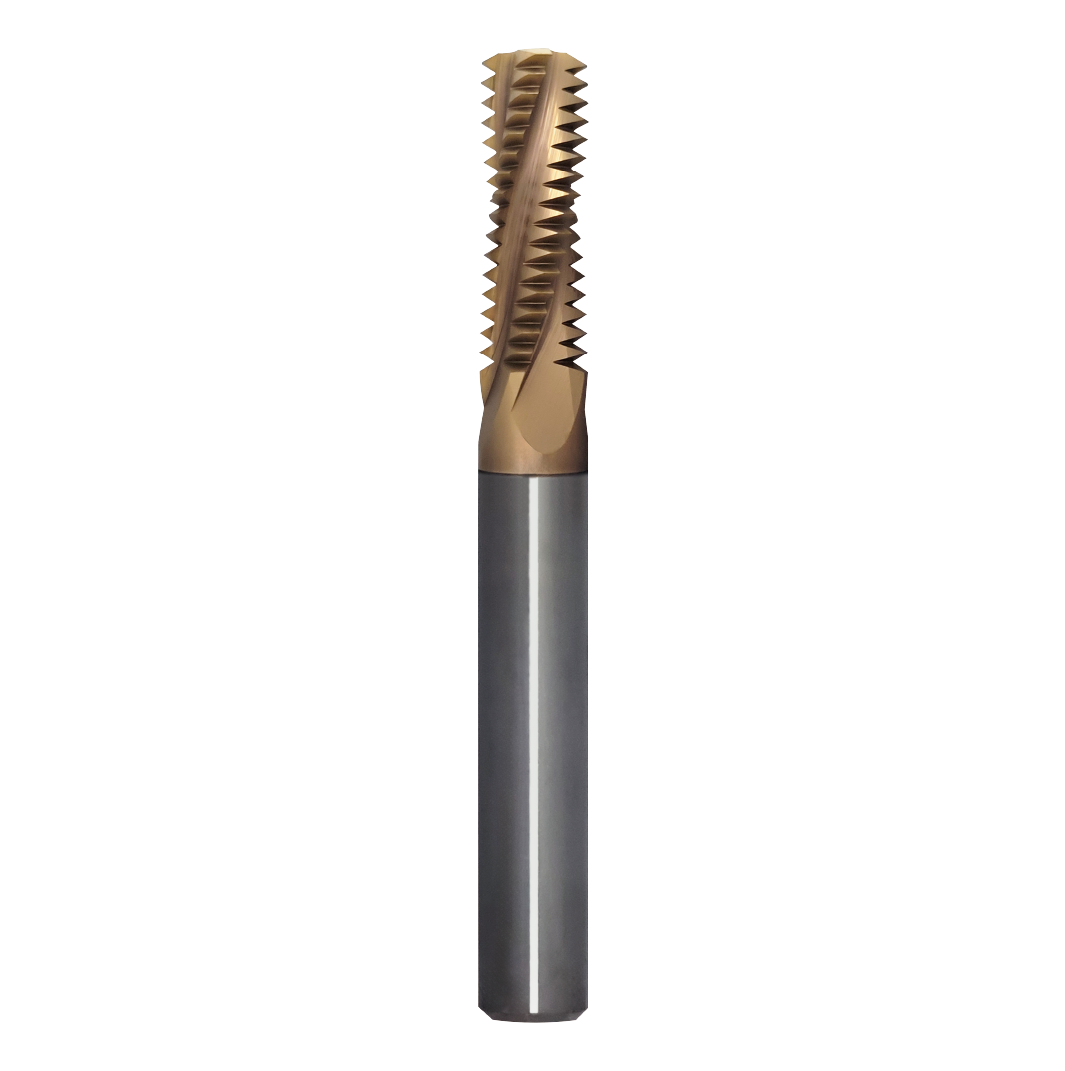

Tungsten Carbide Thread Milling Tools (Internal)

Model: VUB

Full-tooth tungsten steel spiral milling cutter has flexible and wide range of processing applications. Milling and trimming can be completed at one time, saving processing time.

Previous Back to list Next
  • VUB Tungsten Carbide Thread Milling Tools-American-UN (Internal)
  • VUB Tungsten Carbide Thread Milling Tools-American-UN (Internal)
  • VUB Tungsten Carbide Thread Milling Tools-American-UN (Internal)

Specification

Unit: mm

5 VUB 06032UN 5/16 32 6.0 15 3 6 60
5 VUB 08032UN 3/8 32 8.0 20 3 8 60
5 VUB 05128UN 1/4 28 5.1 15 3 6 60
5 VUB 08028UN 7/16-1/2 28 8.0 20 3 8 60
5 VUB 06024UN 5/16 24 6.0 15 3 6 60
5 VUB 08024UN 3/8 24 8.0 20 3 8 60
5 VUB 12024UN 9/16-5/8 24 12.0 30 4 12 75
5 VUB 04820UN 1/4 20 4.8 12 3 6 60
5 VUB 08020UN 7/16 20 8.0 20 3 8 60
5 VUB 10020UN 1/2 20 10.0 25 4 10 75
5 VUB 12020UN 3/4-1 20 12.0 30 4 12 75
5 VUB 06018UN 5/16 18 6.0 15 3 6 60
5 VUB 10018UN 9/16-5/8 18 10.0 25 4 10 75
5 VUB 07516UN 3/8 16 7.5 18.2 3 8 60
5 VUB 12016UN 3/4 16 12.0 30 4 12 75
5 VUB 08014UN 7/16 14 8.0 20 3 8 60
5 VUB 12014UN 7/8 14 12.0 30 4 12 75
5 VUB 10013UN 1/2 13 10.0 25 4 10 75
5 VUB 11512UN 9/16 12 11.5 30 4 12 75
5 VUB 16012UN 1 12 16.0 40 4 16 100
5 VUB 12011UN 5/8 11 12.0 30 4 12 75
5 VUB 16010UN 3/4 10 16.0 40 4 16 100
5 UVB 16009UN 7/8 9 16.0 40 4 16 100
5 VUB 20008UN 1 8 20.0 50 4 20 100

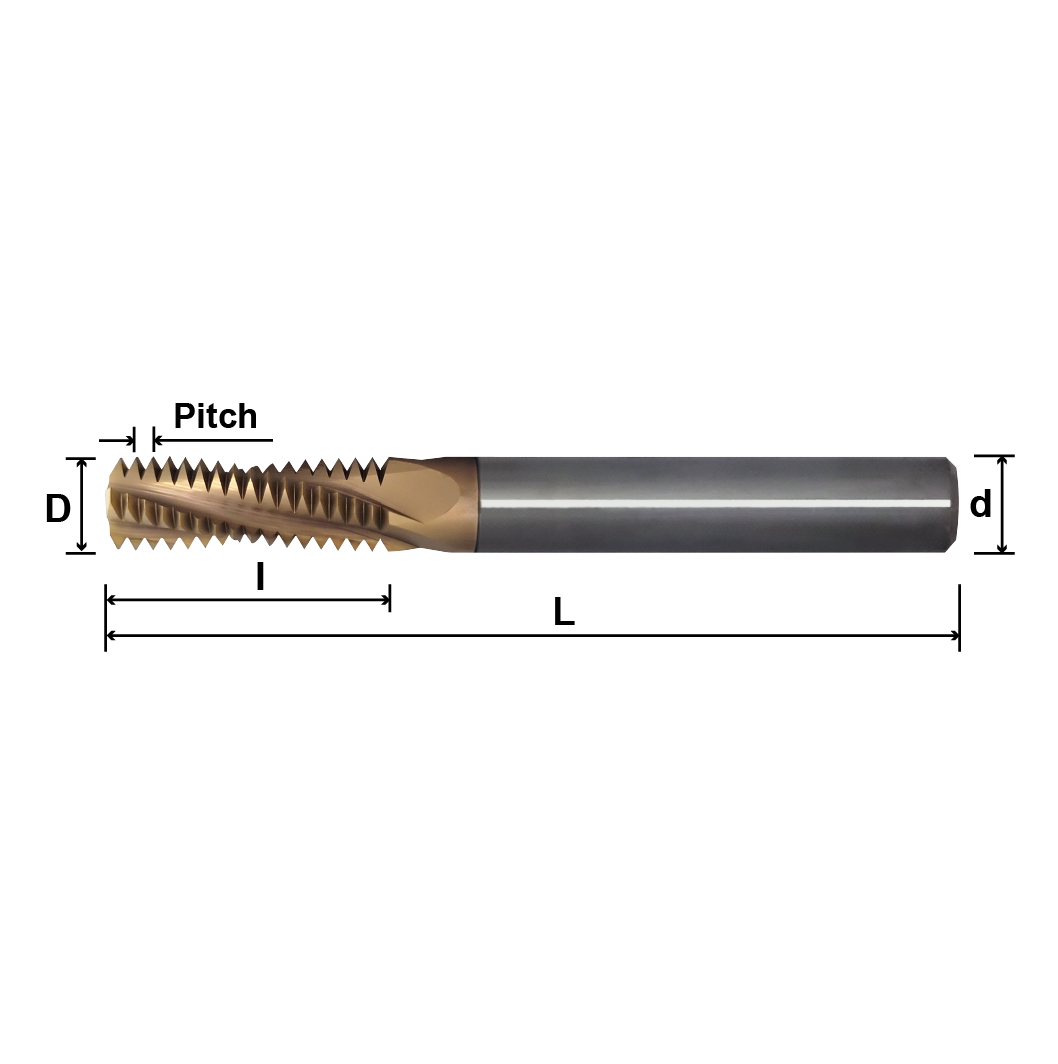

Model No. UNC UNF UNEF P
Pitch		 D
Diameter		 I
Flute Length		 T
Number of Flute		 d
Shank Diameter		 L
Overall Length		 price

Remarks: For other specifications, please call to inquire
