638#Heat Treatment is Dry for Use

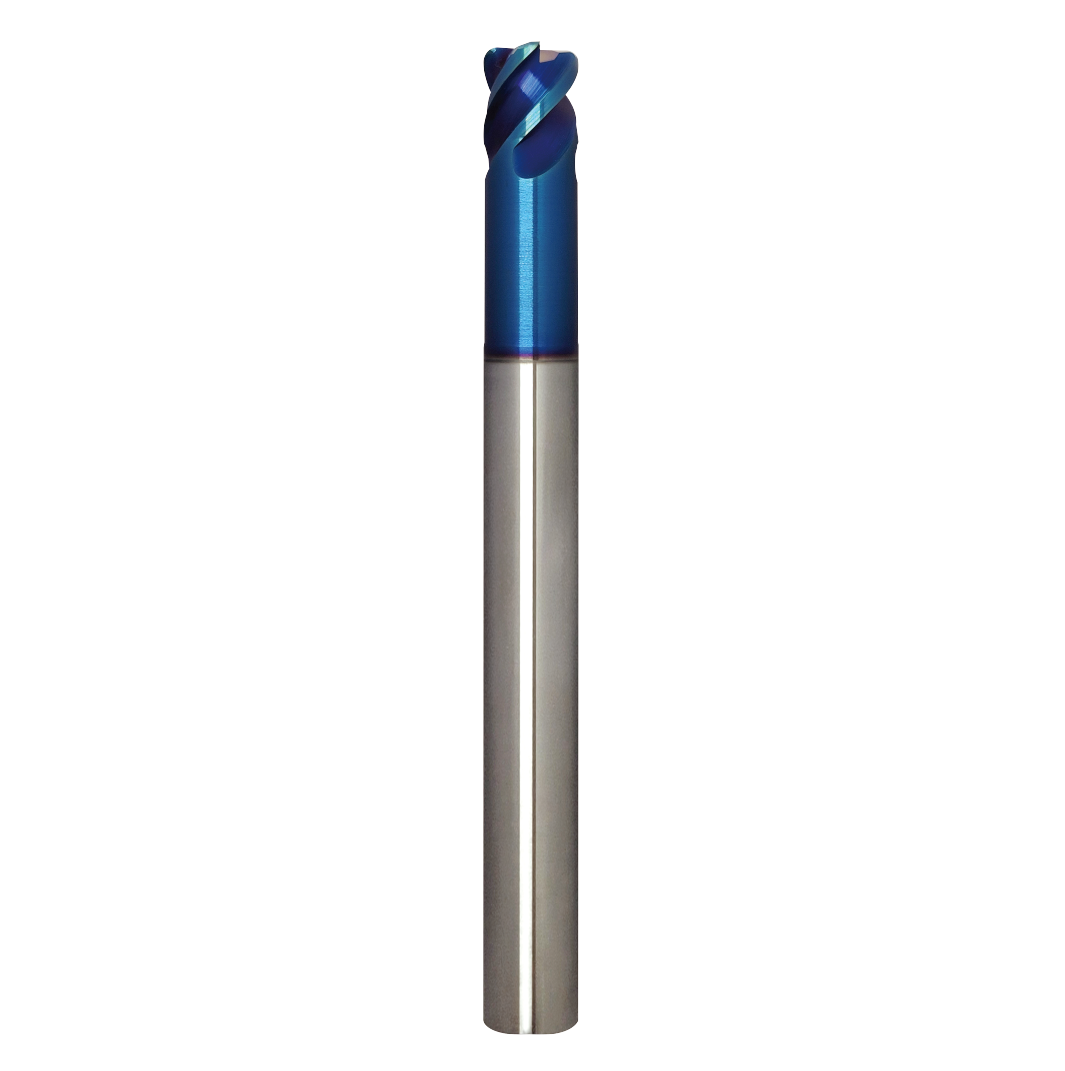

Model: 638 SLR4/MLR4 (Corner Radius, Long Shank),4 Flutes
  • 638
  • NB
  • 45度
  • HRC65
  • Shank h5

Specially designed for HRC45-68 workpiece processing with high heat resistance and high attrition resistance coating NB, even hard to processing, also can be easily to completed.

Suitable for applications：

  • Alloy steel
  • Die steel HRC45~HRC68
Previous Back to list
  • 638 SLR4/MLR4 (Corner Radius, Long Shank),4 Flutes
  • 638 SLR4/MLR4 (Corner Radius, Long Shank),4 Flutes
  • 638 SLR4/MLR4 (Corner Radius, Long Shank),4 Flutes
  • 638 SLR4/MLR4 (Corner Radius, Long Shank),4 Flutes

Specification

Unit: mm

Model No. Diameter D Corner Radius R Flute Length I Effective Length DL  Shank Diameter d Overall Length L price
638 SLR 010024NB 1 0.2R 1 3 4 75
638 SLR 010024NBD6 1 0.2R 1 3 6 75
638 MLR 010024NB 1 0.2R 1 3 4 100
638 MLR 010024NBD6 1 0.2R 1 3 6 100
638 SLR 015024NB 1.5 0.2R 1.5 5 4 75
638 SLR 015024NBD6 1.5 0.2R 1.5 5 6 75
638 MLR 015024NB 1.5 0.2R 1.5 5 4 100
638 MLR 015024NBD6 1.5 0.2R 1.5 5 6 100
638 SLR 020024NB 2 0.2R 2 6 4 75
638 SLR 020024NBD6 2 0.2R 2 6 6 75
638 MLR 020024NB 2 0.2R 2 6 4 100
638 MLR 020024NBD6 2 0.2R 2 6 6 100
638 SLR 020054NB 2 0.5R 2 6 4 75
638 SLR 020054NBD6 2 0.5R 2 6 6 75
638 MLR 020054NB 2 0.5R 2 6 4 100
638 MLR 020054NBD6 2 0.5R 2 6 6 100
638 SLR 030024NBD3 3 0.2R 3 10 3 75
638 SLR 030024NB 3 0.2R 3 10 4 75
638 SLR 030024NBD6 3 0.2R 3 10 6 75
638 MLR 030024NBD3 3 0.2R 3 10 3 100
638 MLR 030024NB 3 0.2R 3 10 4 100
638 MLR 030024NBD6 3 0.2R 3 10 6 100
638 SLR 030054NBD3 3 0.5R 3 10 3 75
638 SLR 030054NB 3 0.5R 3 10 4 75
638 SLR 030054NBD6 3 0.5R 3 10 6 75
638 MLR 030054NBD3 3 0.5R 3 10 3 100
638 MLR 030054NB 3 0.5R 3 10 4 100
638 MLR 030054NBD6 3 0.5R 3 10 6 100
638 SLR 040024NB 4 0.2R 4 12 4 75
638 SLR 040024NBD6 4 0.2R 4 12 6 75
638 MLR 040024NB 4 0.2R 4 12 4 100
638 MLR 040024NBD6 4 0.2R 4 12 6 100
638 SLR 040054NB 4 0.5R 4 12 4 75
638 SLR 040054NBD6 4 0.5R 4 12 6 75
638 MLR 040054NB 4 0.5R 4 12 4 100
638 MLR 040054NBD6 4 0.5R 4 12 6 100
638 SLR 040104NB 4 1R 4 12 4 75
638 SLR 040104NBD6 4 1R 4 12 6 75
638 MLR 040104NB 4 1R 4 12 4 100
638 MLR 040104NBD6 4 1R 4 12 6 100
638 SLR 060024NB 6 0.2R 6 18 6 75
638 MLR 060024NB 6 0.2R 6 18 6 100
638 SLR 060054NB 6 0.5R 6 18 6 75
638 MLR 060054NB 6 0.5R 6 18 6 100
638 SLR 060104NB 6 1R 6 18 6 75
638 MLR 060104NB 6 1R 6 18 6 100
638 SLR 080024NB 8 0.2R 8 24 6 75
638 MLR 080024NB 8 0.2R 8 24 6 100
638 SLR 080054NB 8 0.5R 8 24 8 75
638 MLR 080054NB 8 0.5R 8 24 8 100
638 SLR 080104NB 8 1R 8 24 8 75
638 MLR 080104NB 8 1R 8 24 8 100
638 SLR 080204NB 8 2R 8 24 8 75
638 MLR 080204NB 8 2R 8 24 8 100
638 MLR 100054NB 10 0.5R 10 30 10 100
638 MLR 100104NB 10 1R 10 30 10 100
638 MLR 100204NB 10 2R 10 30 10 100
638 MLR 120054NB 12 0.5R 12 36 12 100
638 MLR 120104NB 12 1R 12 36 12 100
638 MLR 120204NB 12 2R 12 36 12 100
638 MLR 120304NB 12 3R 12 36 12 100

Remarks: For other specifications, please call to inquire
