Tungsten Carbide End Mill for Composite Material & Carbon Fiber - XX Cutter

Model: For Composite Materials, Carbon Fiber tungsten Carbide milling cutter
  • 638
  • Shank h5

Apply to aerospace industry, automobile and motorcycle industry, bicycle industry.
Excellent wear resistance, good cutting effect, no burrs in forward milling and reverse milling, high precision and good use effect.

Suitable for applications：

  • Hard-to-cut materials
  • Fiberglass
  • Composite materials
Previous Back to list Next
  • For Composite Materials, Carbon Fiber tungsten Carbide milling cutter
  • For Composite Materials, Carbon Fiber tungsten Carbide milling cutter

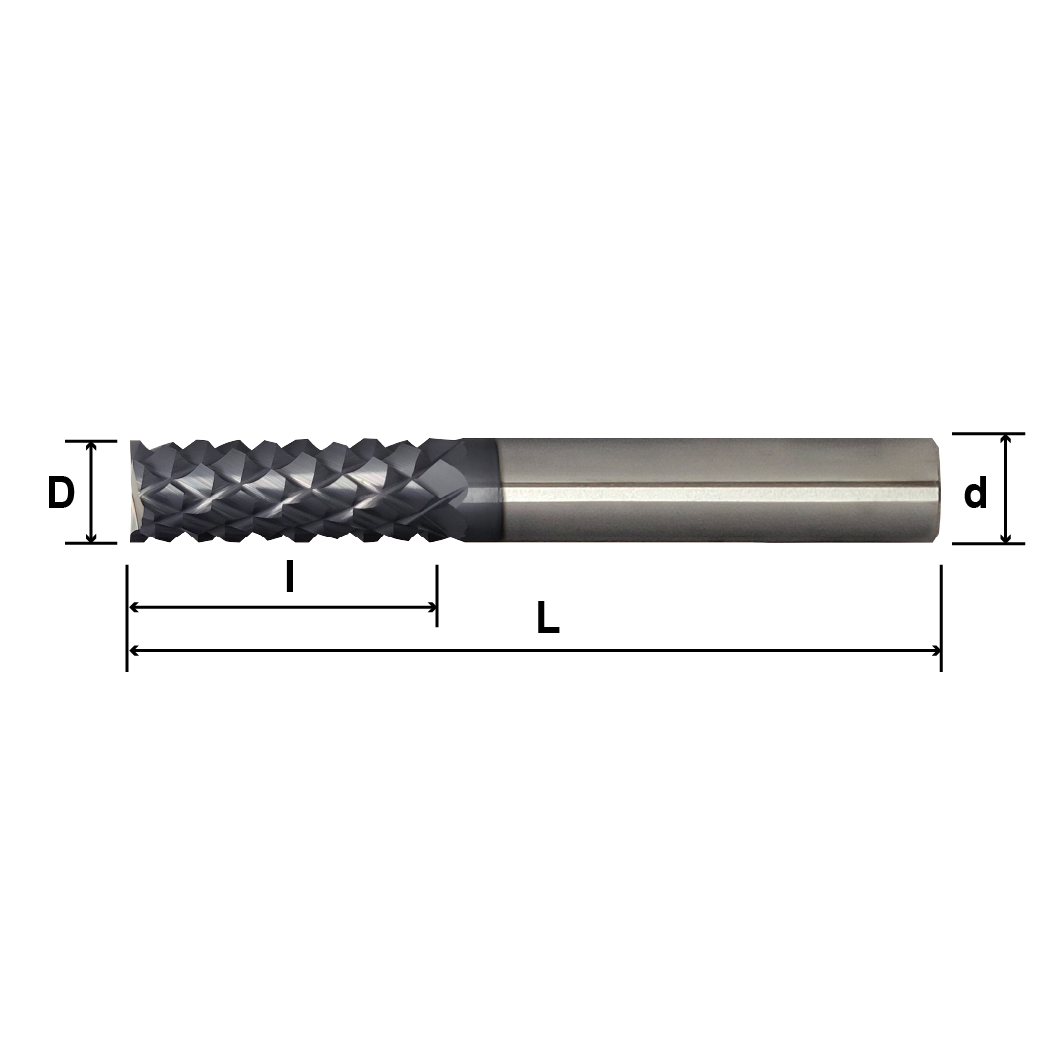

Specification

Unit: mm

Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price
638 XXE 010N 1 4 4 50
638 XXE 015N 1.5 6 4 50
638 XXE 020N 2 8 4 50
638 XXE 030N 3 12 4 50
638 XXE 040N 4 16 4 50
638 XXE 060N 6 24 6 60
638 XXE 080N 8 32 8 75
638 XXE 100NS30 10 30 10 75
638 XXE 100NS50L100 10 50 10 100
638 XXE 120NS50L100 12 50 12 100

Remarks: For other specifications, please call to inquire
