Tungsten Steel Tool Head for the Lock Tooth

Model: 2D TMAE (Compound Lathe End Mill for Aluminum Alloy),3 Flutes
  • 2D
  • 5
  • 40度
  • HRC35
  • Shank h5

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Back to list Next
  • 2D TMAE (Compound Lathe End Mill for Aluminum Alloy),3 Flutes
  • 2D TMAE (Compound Lathe End Mill for Aluminum Alloy),3 Flutes

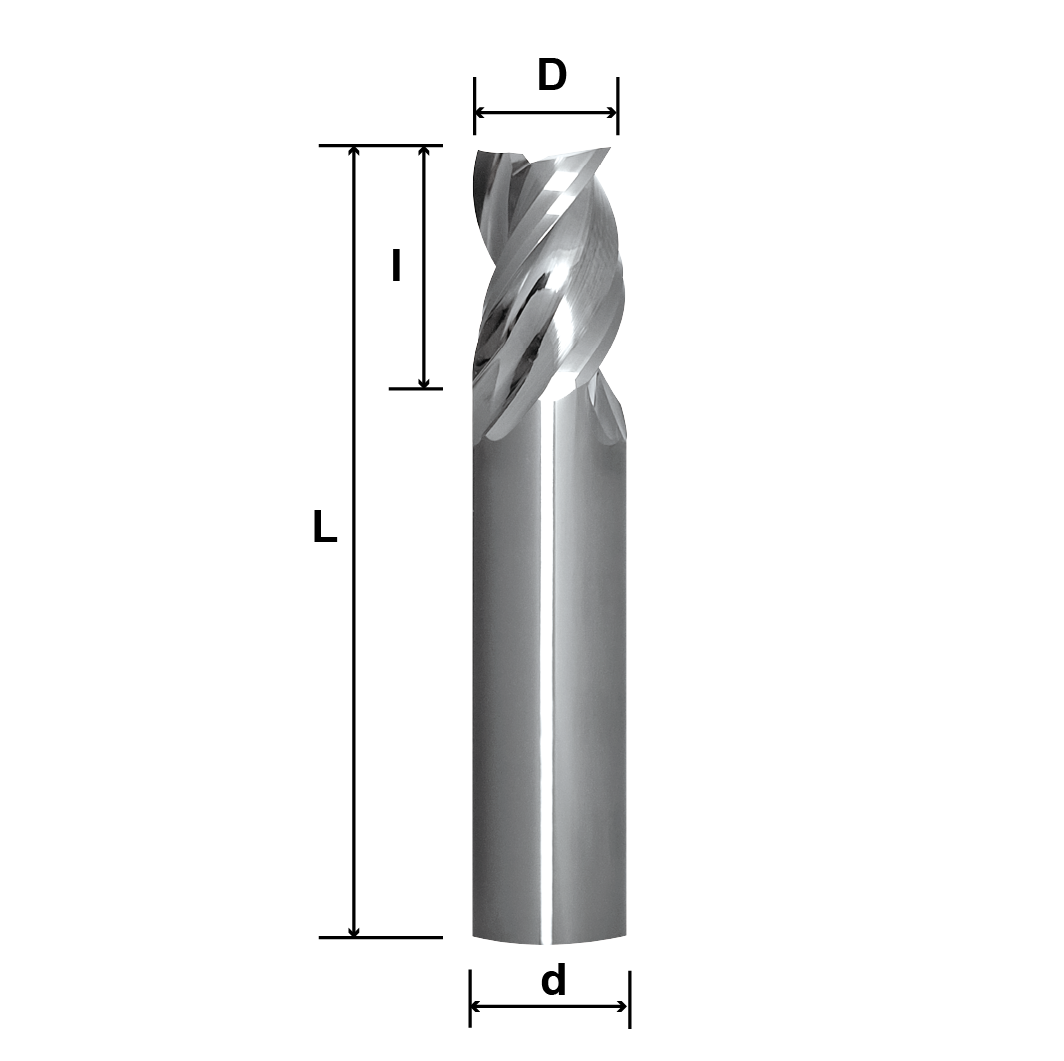

Specification

Unit: mm

Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price
2D TMAE 0103 1 1.5 6 50
2D TMAE 0153 1.5 2.5 6 50
2D TMAE 0203 2 3 6 50
2D TMAE 0253 2.5 4 6 50
2D TMAE 0303 3 4.5 6 50
2D TMAE 0403 4 6 6 50
2D TMAE 0503 5 8 6 50
2D TMAE 0603 6 9 6 50
2D TMAE 0803 8 12 8 50
2D TMAE 1003 10 15 10 50
2D TMAE 1203 12 18 12 60
2D TMAE 1603 16 24 12 60

Remarks: For other specifications, please call to inquire
