Tungsten Steel Tool Head for the Lock Tooth

Model: 2D TMTSB (Compound Lathe Ball Nose End Mill-Small Handle),2 Flutes
  • 2D
  • 5
  • R7
  • 30度
  • Shank h5

Suitable for applications：

  • Stainless steel
  • Heat-resistant alloy
  • Titanium alloy
  • General steel
Previous Back to list Next
  • 2D TMTSB (Compound Lathe Ball Nose End Mill-Small Handle),2 Flutes
  • 2D TMTSB (Compound Lathe Ball Nose End Mill-Small Handle),2 Flutes

Specification

Unit: mm

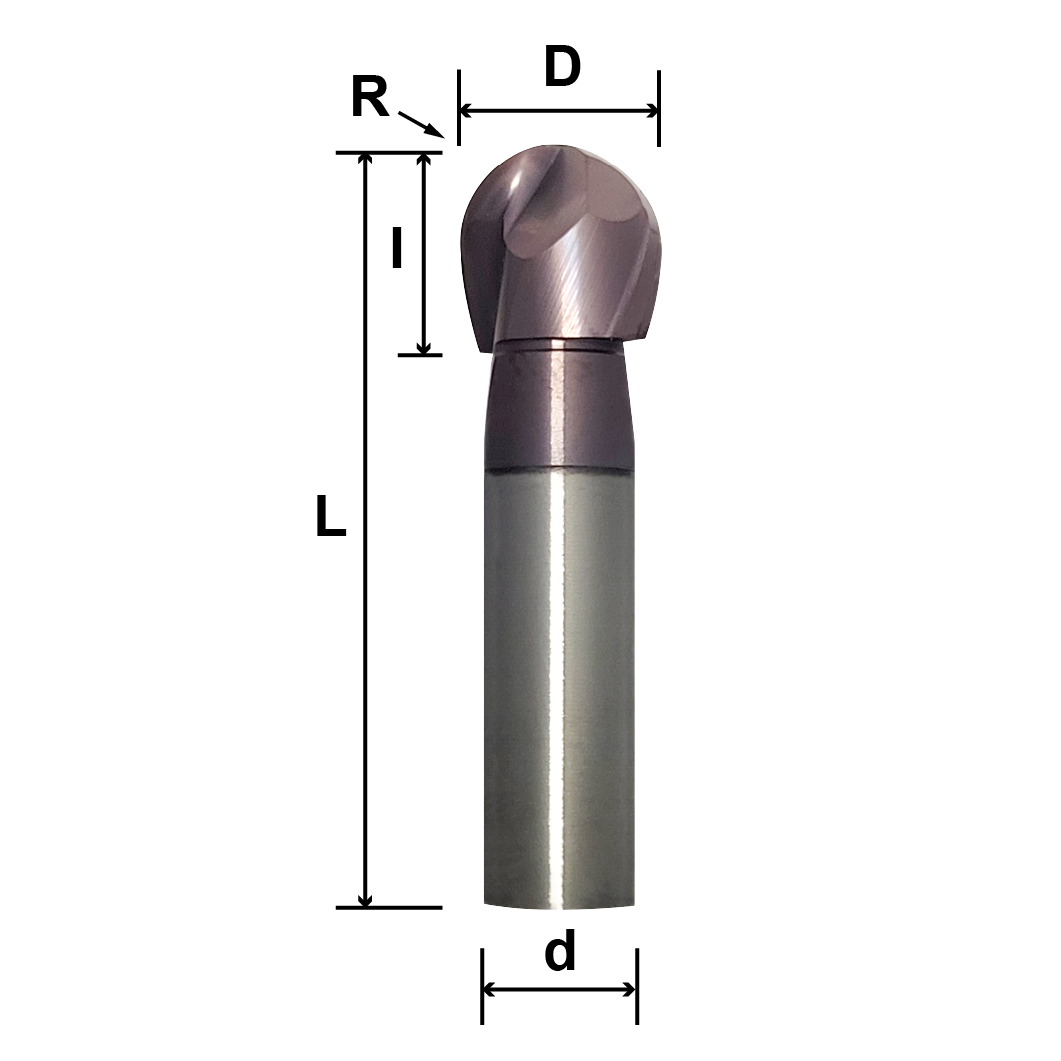

Model No. Radius R Diameter D Flute Length I Shank Diameter d Overall Length L price
2D TMTSB 0802R7 4R 8 8 6 30
2D TMTSB 1002R7 5R 10 10 6 35
2D TMTSB 1202R7 6R 12 12 6 40

Remarks: For other specifications, please call to inquire
