638#Heat Treatment is Dry for Use

Model: 638 MSB ( Ball Nose, For High Hardness Material), 2 Flutes-Micro Diameter
  • 638
  • OS
  • 30度
  • HRC65
  • Shank h5

Specially designed for HRC45-68 workpiece processing with high heat resistance and high attrition resistance coating NB, even hard to processing, also can be easily to completed.

Suitable for applications：

  • Alloy steel
  • Die steel HRC45~HRC68
Previous Back to list Next
  • 638 MSB ( Ball Nose, For High Hardness Material), 2 Flutes-Micro Diameter
  • 638 MSB ( Ball Nose, For High Hardness Material), 2 Flutes-Micro Diameter

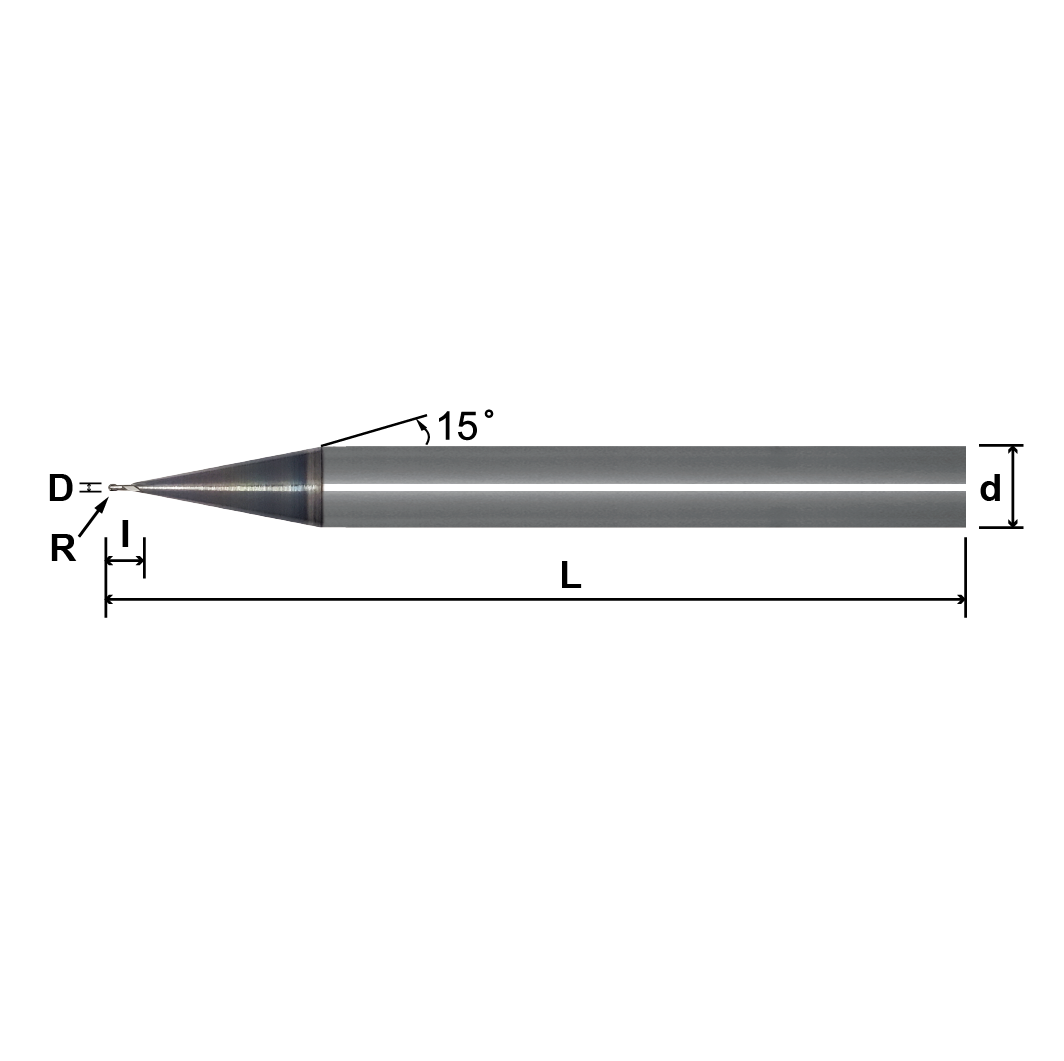

Specification

Unit: mm

Model No. Radius R Diameter D Flute Length I Shank Diameter d Overall Length L price
638 MSB 0022OS 0.1R 0.2 0.4 4 50
638 MSB 0032OS 0.15R 0.3 0.6 4 50
638 MSB 0042OS 0.2R 0.4 0.8 4 50
638 MSB 0052OS 0.25R 0.5 1 4 50
638 MSB 0062OS 0.3R 0.6 1.2 4 50
638 MSB 0082OS 0.4R 0.8 1.6 4 50

Remarks: For other specifications, please call to inquire
