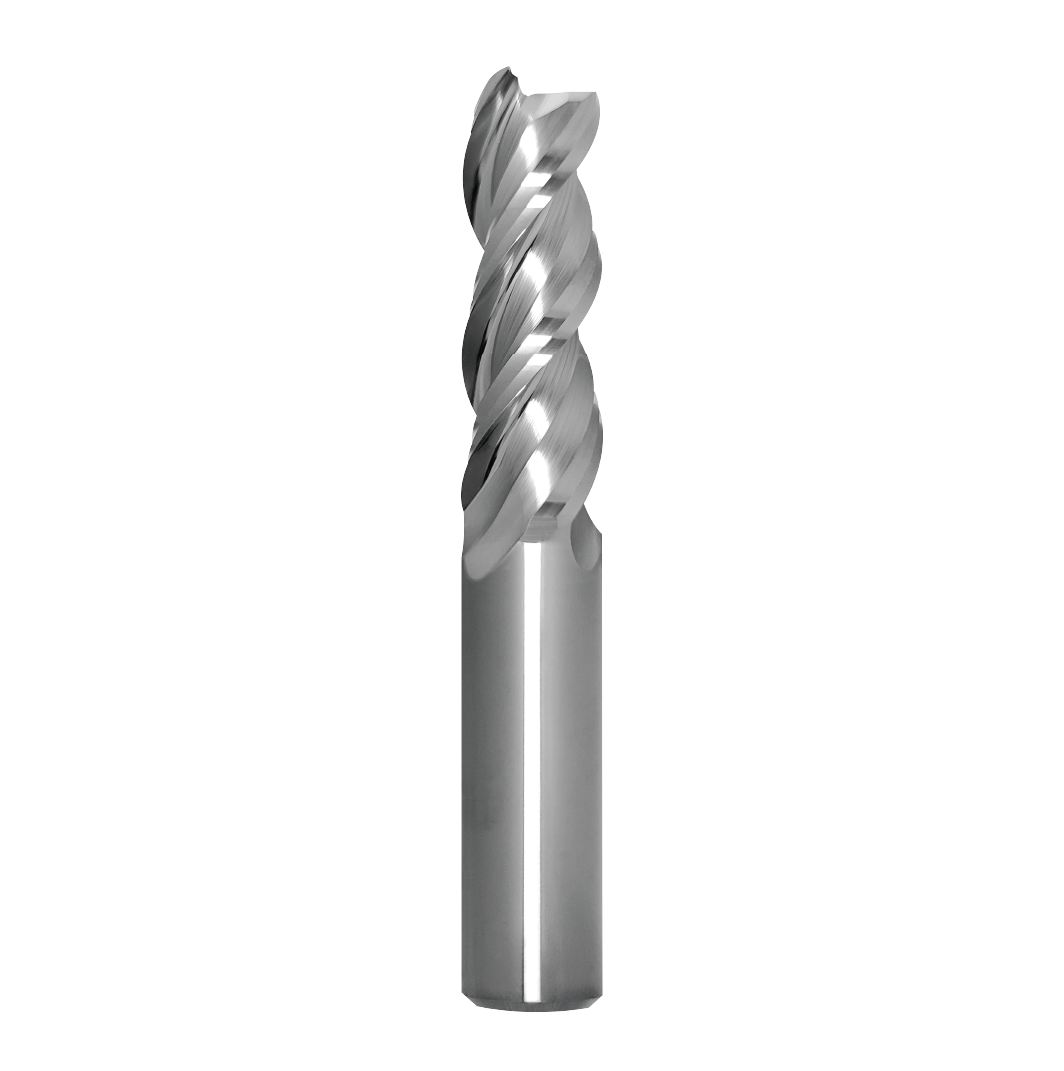

Tungsten Carbide End Mill for Aluminum Alloy & Copper

Model: 2 AED, 3 Flutes
  • 2
  • 40度
  • HRC35
  • Shank h5

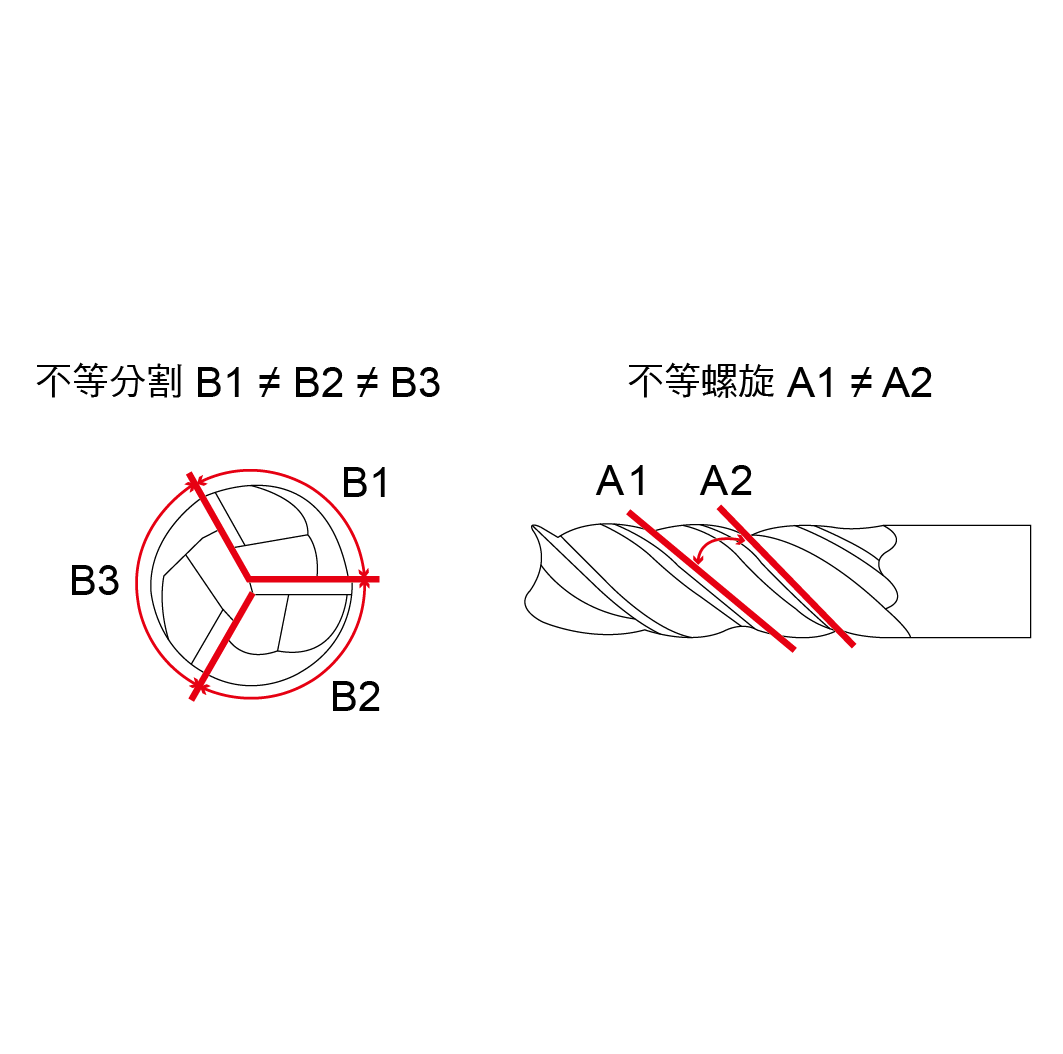

The unique three relief angle design can improve the chip removal have more fluency. The larger space for iron filings removal, also will not reduce the cutter stiffness.
After polishing the groove bottom will much more smooth, cutting will more fluency.

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Back to list Next
  • 2 AED (For Aluminum Alloy),3 Flutes
  • 2 AED (For Aluminum Alloy),3 Flutes
  • 2 AED (For Aluminum Alloy),3 Flutes

Specification

Unit：mm

2 AED 0303 3 10 6 50
2 AED 0353 3.5 11 6 50
2 AED 0403 4 12 6 50
2 AED 0453 4.5 13 6 50
2 AED 0503 5 15 6 50
2 AED 0553 5.5 17 6 50
2 AED 0603 6 18 6 50
2 AED 0803 8 24 8 60
2 AED 1003 10 30 10 75
2 AED 1203 12 36 12 75
2 AED 1603 16 50 16 100
2 AED 2003 20 50 20 100

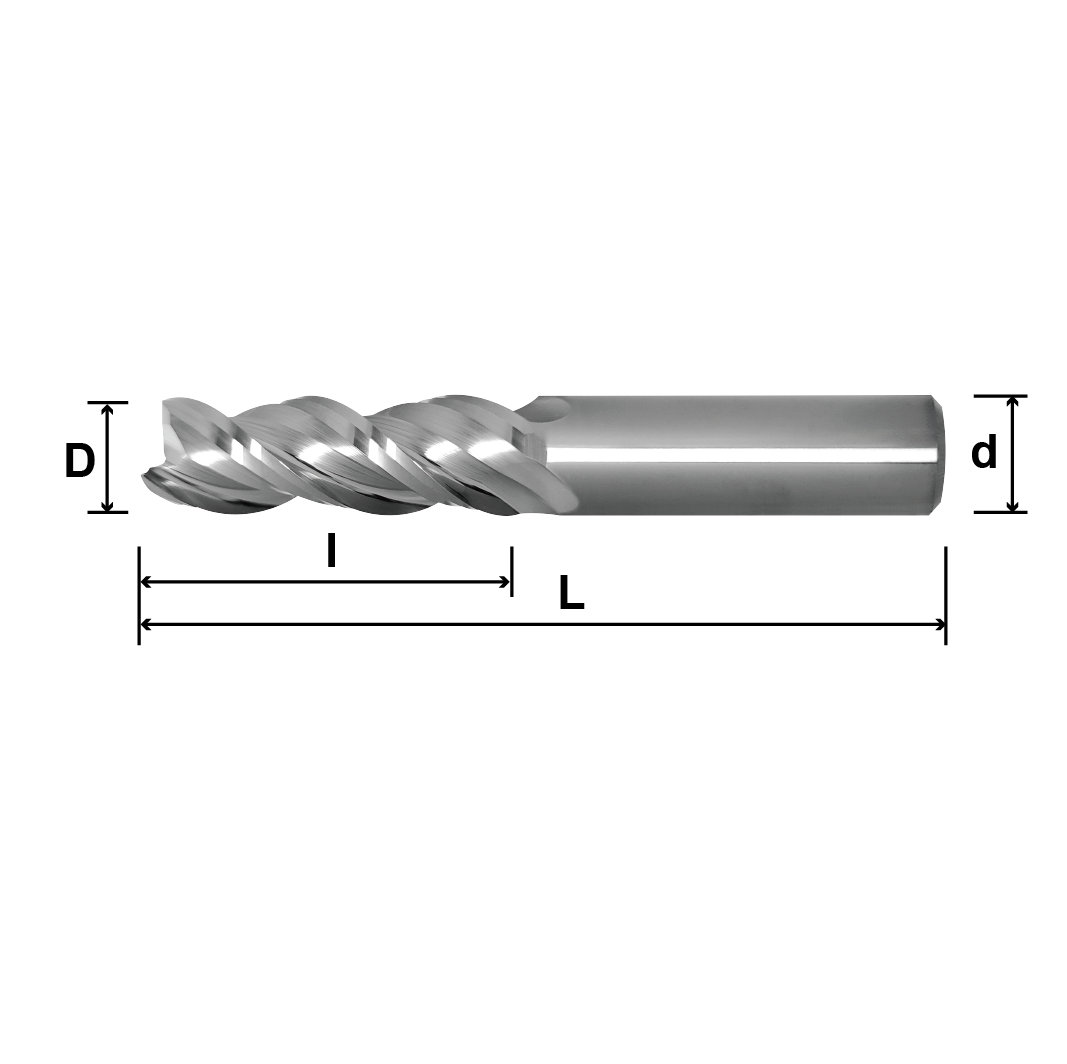

Model No. Diameter D Flute Length I Shank Diameter d Full Length L price

Remarks: For other specifications, please call to inquire
