Aluminum Alloy Series

Model: 2 AEC (For Aluminum Alloy),3 Flutes
  • 2
  • 40度
  • HRC35
  • Shank h5

The most cost-effective end mill ever for aluminum alloy.
Use on aluminum, copper and soft work piece. The design of the geometric angle will let the edge much more sharp and non sticky. On finesse processing will have the excellent surface.
Deep cut, Deep feed, Fineness surface, Excellent on vertical processing.

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Previous Back to list Next
  • 2 AEC (For Aluminum Alloy),3 Flutes
  • 2 AEC (For Aluminum Alloy),3 Flutes

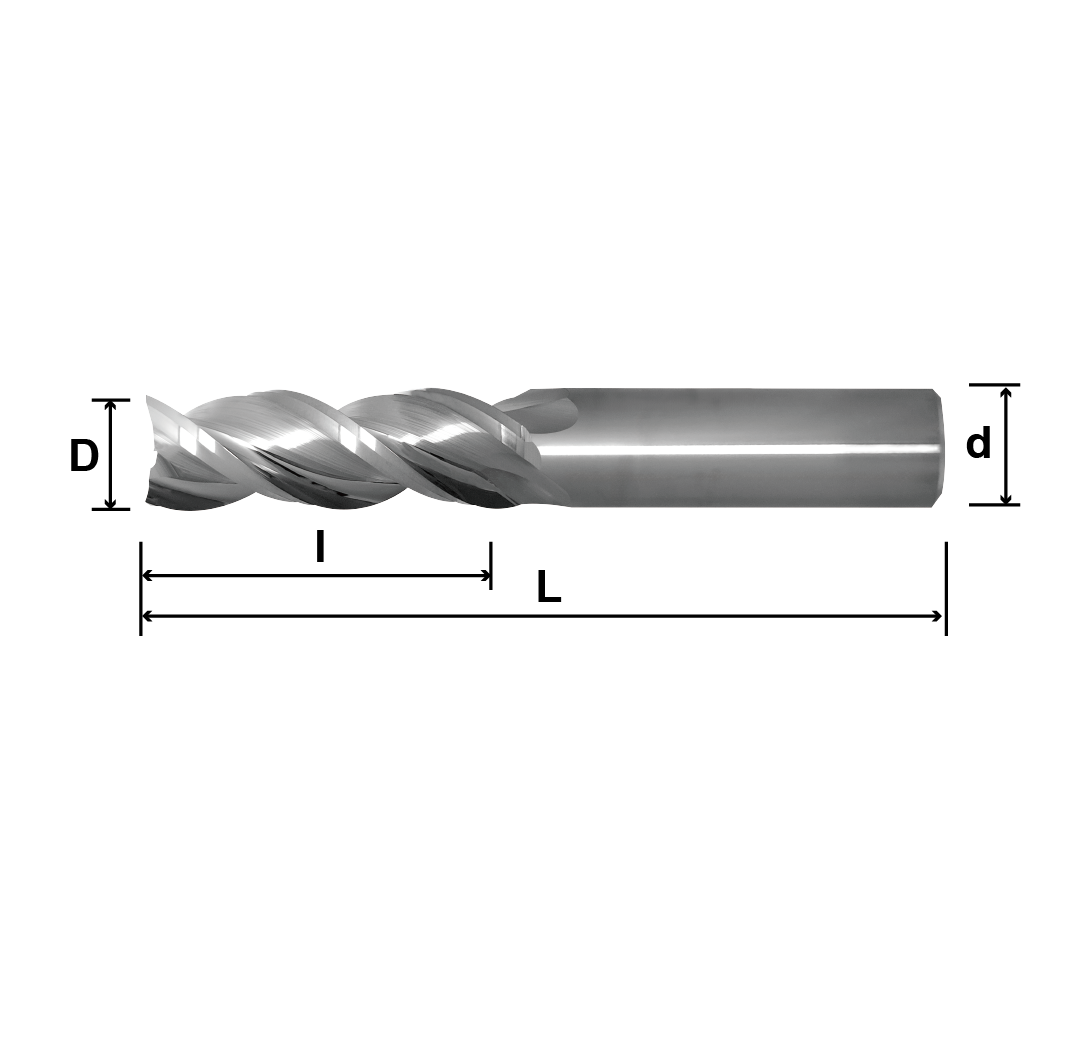

Specification

Unit：mm

Model No. Diameter
D		 Flute Length
I		 Shank Diameter
d		 Full Length
L		 price
2 AEC 0103 1 3 4 50
2 AEC 0153 1.5 5 4 50
2 AEC 0203 2 6 4 50
2 AEC 0203D6 2 6 6 50
2 AEC 0253 2.5 8 4 50
2 AEC 0253D6 2.5 8 6 50
2 AEC 0303 3 9 4 50
2 AEC 0303D6 3 9 6 50
2 AEC 0403 4 12 4 50
2 AEC 0403D6 4 12 6 50
2 AEC 0503 5 15 6 50
2 AEC 0603 6 18 6 50
2 AEC 0703 7 21 8 60
2 AEC 0803 8 24 8 60
2 AEC 0903 9 27 10 75
2 AEC 1003 10 30 10 75
2 AEC 1103 11 33 12 75
2 AEC 1203 12 36 12 75
2 AEC 1403 14 45 14 100
2 AEC 1603 16 50 16 100
2 AEC 2003 20 50 20 100

Remarks: For other specifications, please call to inquire
