Aluminum Alloy Series

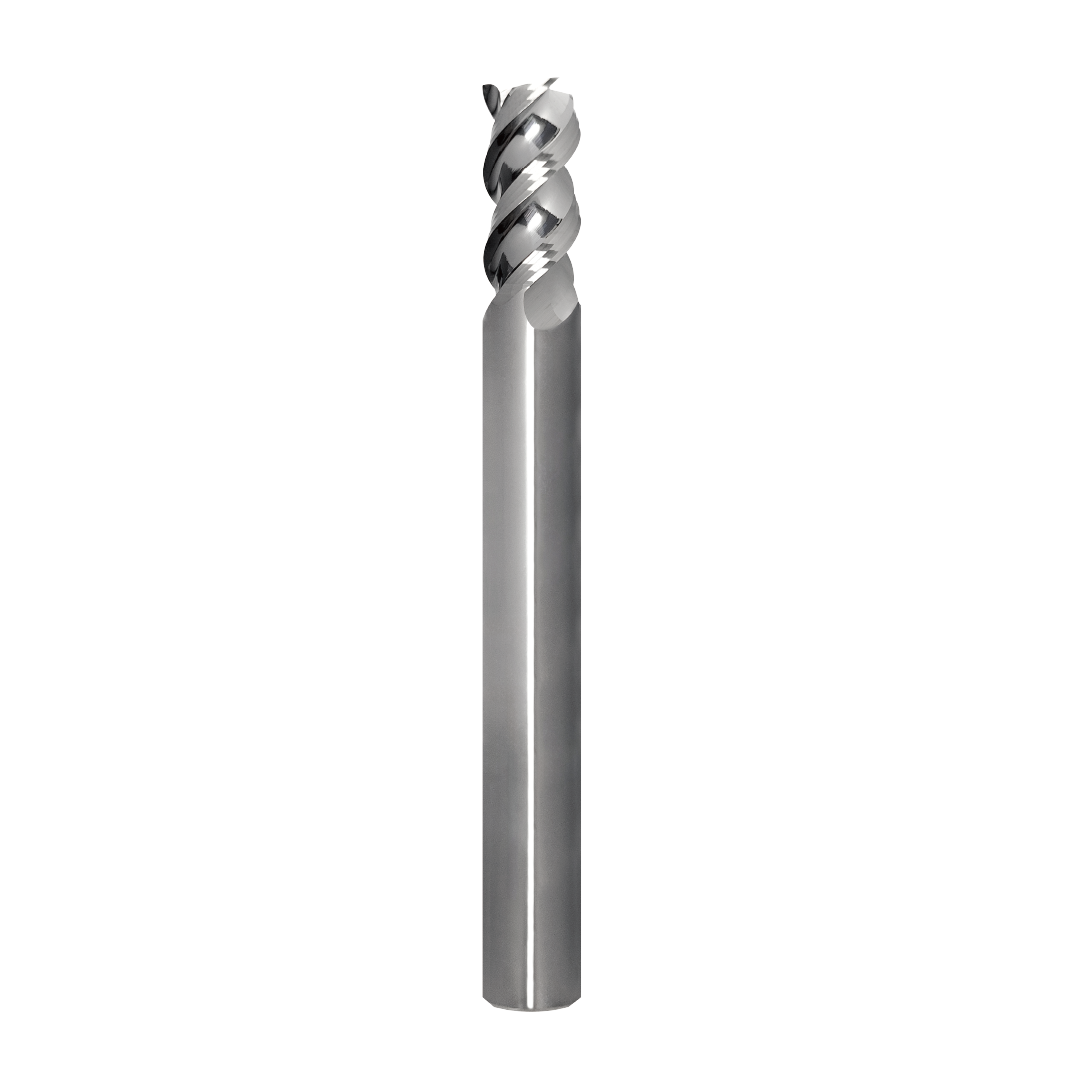

Model: 2 SLAE / MLAE (Long Shank, For Aluminum Alloy),3 Flutes
  • 2
  • 50度
  • HRC35
  • Shank h5

The unique three relief angle design can improve the chip removal have more fluency. The larger space for iron filings removal, also will not reduce the cutter stiffness.
After polishing the groove bottom will much more smooth, cutting will more fluency.

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Previous Back to list Next
  • 2 SLAE / MLAE (Long Shank, For Aluminum Alloy),3 Flutes
  • 2 SLAE / MLAE (Long Shank, For Aluminum Alloy),3 Flutes

Specification

Unit：mm

2 SLAE 0403 4 12 4 75
2 SLAE 0503 5 15 6 75
2 SLAE 0603 6 18 6 75
2 MLAE 0603 6 18 6 100
2 SLAE 0803 8 24 8 75
2 MLAE 0803 8 24 8 100
2 MLAE 1003 10 30 10 100
2 MLAE 1203 12 36 12 100

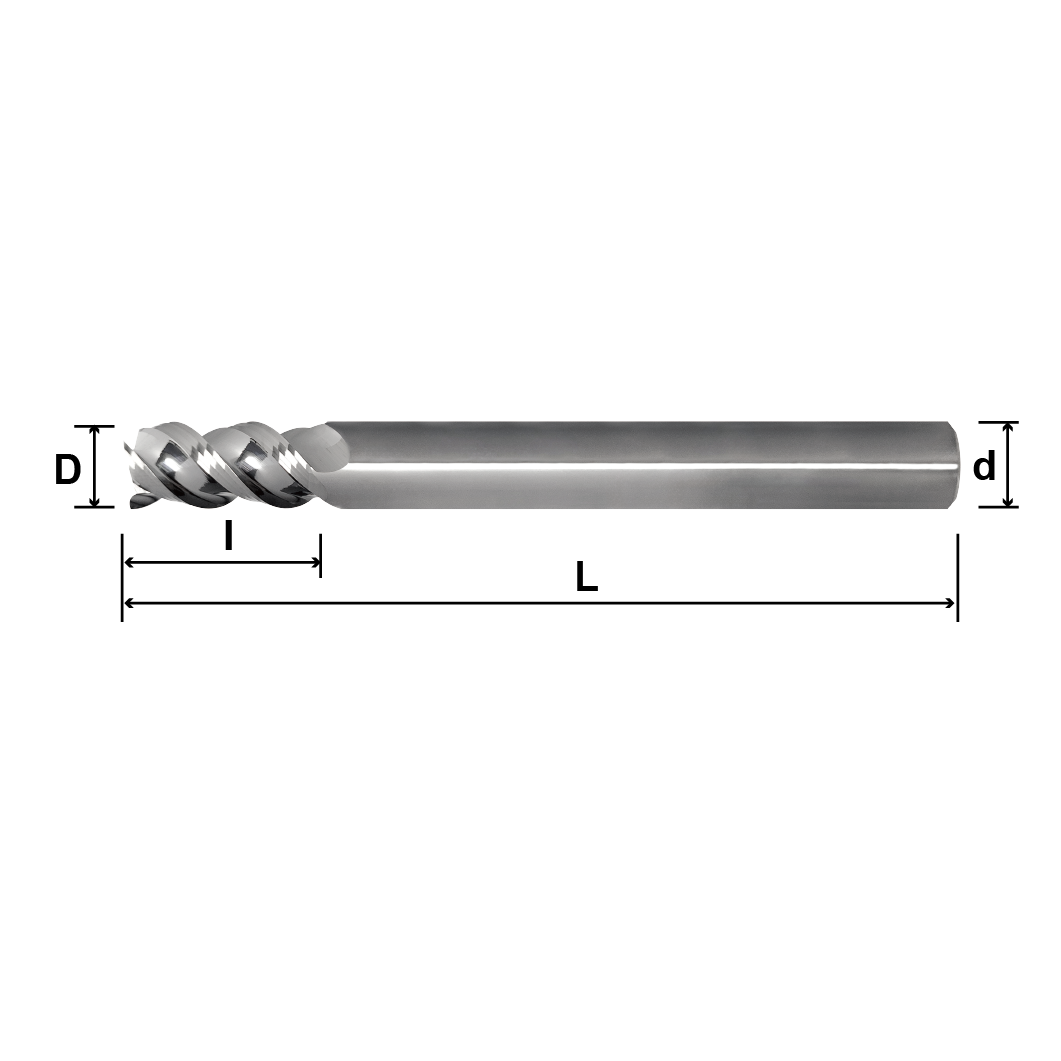

Model No. Diameter D Flute Length I Shank Diameter d Full length L price

Remarks: For other specifications, please call to inquire
