Aluminum Alloy Series

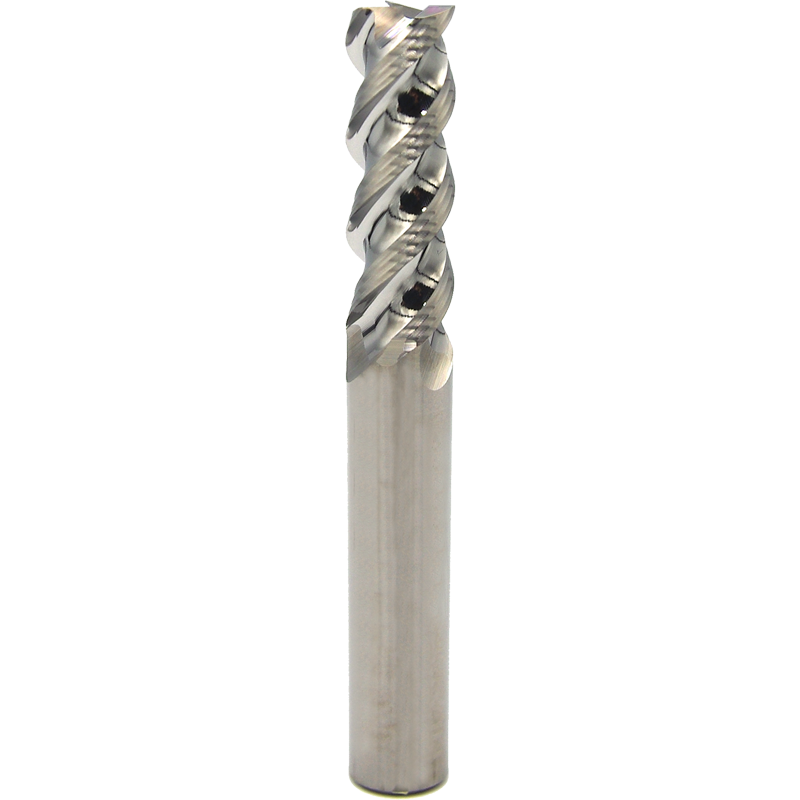

Model: 2 AE (For Aluminum Alloy),3 Flutes
  • 2
  • 50度
  • HRC35
  • Shank h5

The unique three relief angle design can improve the chip removal have more fluency. The larger space for iron filings removal, also will not reduce the cutter stiffness.
After polishing the groove bottom will much more smooth, cutting will more fluency.

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Previous Back to list Next
  • 2 AE (For Aluminum Alloy),3 Flutes
  • 2 AE (For Aluminum Alloy),3 Flutes
  • 2 AE (For Aluminum Alloy),3 Flutes

Specification

Unit：mm

2 AE 0103 1 3 4 50
2 AE 0153 1.5 4.5 4 50
2 AE 0203 2 6 4 50
2 AE 0203D6 2 6 6 50
2 AE 0253 2.5 8 4 50
2 AE 0253D6 2.5 8 6 50
2 AE 0303D3 3 10 3 50
2 AE 0303 3 10 4 50
2 AE 0303D6 3 10 6 50
2 AE 0353 3.5 11 4 50
2 AE 0353D6 3.5 11 6 50
2 AE 0403 4 12 4 50
2 AE 0403D6 4 12 6 50
2 AE 0453 4.5 13 6 50
2 AE 0503 5 15 6 50
2 AE 0603 6 18 6 50
2 AE 0703 7 21 8 60
2 AE 0803 8 24 8 60
2 AE 0903 9 27 10 75
2 AE 1003 10 30 10 75
2 AE 1103 11 33 12 75
2 AE 1203 12 36 12 75
2 AE 1403 14 45 14 100
2 AE 1403D16 14 45 16 100
2 AE 1603 16 50 16 100
2 AE 2003 20 50 20 100
Model No. Diameter
D		 Flute Length
I		 Shank Diameter
d		 Full length
L		 Price

Remarks: For other specifications, please call to inquire
