Aluminum Alloy Series

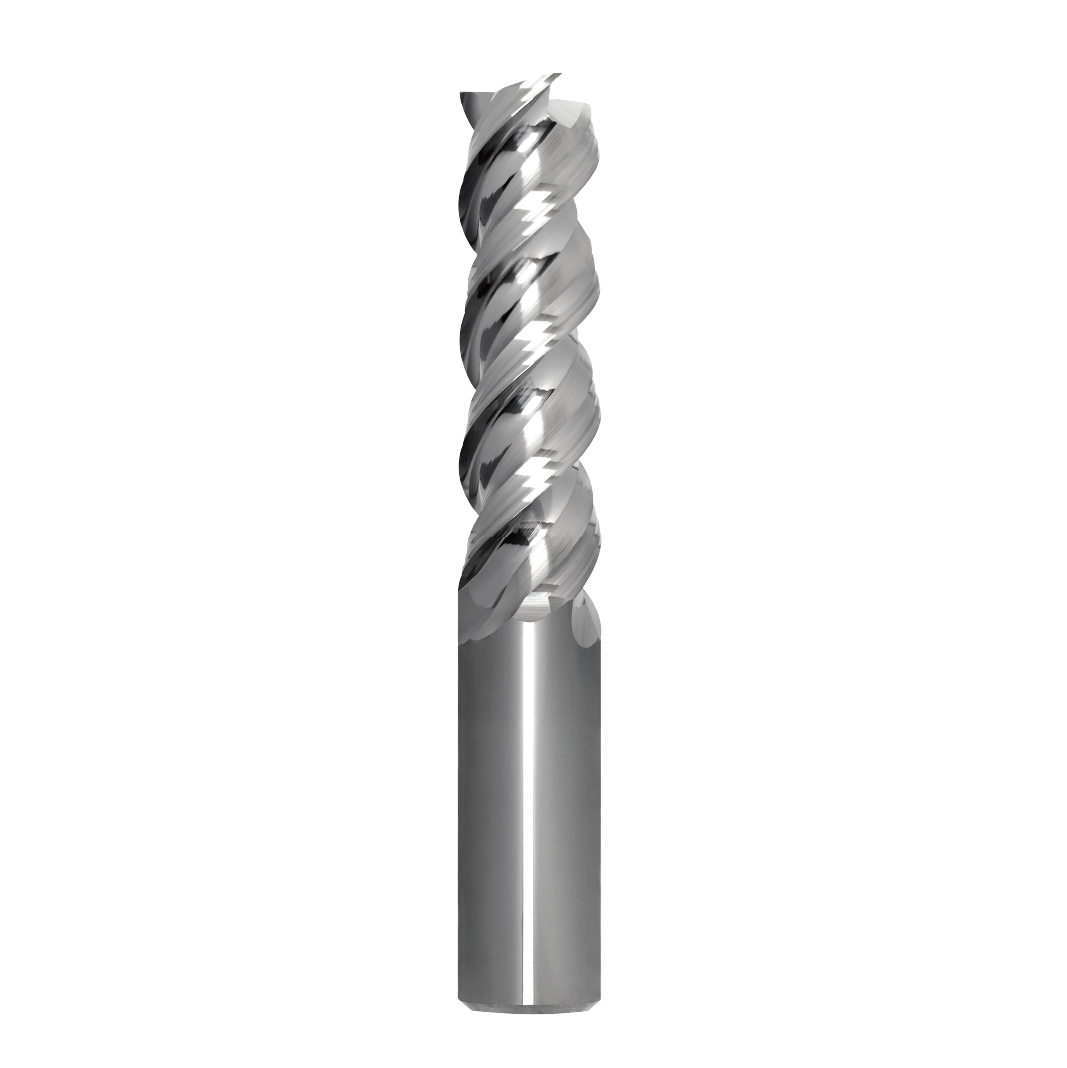

Model: 2 AEL (Long Flute Length, For Aluminum Alloy),3 Flutes
  • 2
  • 50度
  • HRC35
  • Shank h5

The unique three relief angle design can improve the chip removal have more fluency. The larger space for iron filings removal, also will not reduce the cutter stiffness.
After polishing the groove bottom will much more smooth, cutting will more fluency.

Suitable for applications：

  • Aluminum alloy
  • Copper alloy
  • Copper aluminum alloy
Previous Back to list Next
  • 2 AEL (Long Flute Length, For Aluminum Alloy),3 Flutes
  • 2 AEL (Long Flute Length, For Aluminum Alloy),3 Flutes

Specification

Unit：mm

2 AEL 0103D6 1 5 6 50
2 AEL 0153D6 1.5 8 6 50
2 AEL 0153S10D6 1.5 10 6 50
2 AEL 0203D6 2 10 6 50
2 AEL 0203S12D6 2 12 6 50
2 AEL 0253D6S13 2.5 13 6 50
2 AEL 0306D6 3 15 6 75
2 AEL 0303D6S18 3 18 6 75
2 AEL 0403D6S16 4 16 6 50
2 AEL 0403 4 20 4 75
2 AEL 0403D6 4 20 6 75
2 AEL 0403D6S25 4 25 6 75
2 AEL 0503S20 5 20 6 75
2 AEL 0503 5 25 6 75
2 AEL 0503S30 5 30 6 75
2 AEL 0503S40 5 40 6 100
2 AEL 0603S25L75 6 25 6 75
2 AEL 0603S30L75 6 30 6 75
2 AEL 0603S30L100 6 30 6 100
2 AEL 0603S35L100 6 35 6 100
2 AEL 0603S40L100 6 40 6 100
2 AEL 0603S45L100 6 45 6 100
2 AEL 0603S50L100 6 50 6 100
2 AEL 0703S35L100 7 35 8 100
2 AEL 0803S32 8 32 8 75
2 AEL 0803S40L100 8 40 8 100
2 AEL 0803S50L100 8 50 8 100
2 AEL 0903 9 45 10 100
2 AEL 1003S40 10 40 10 100
2 AEL 1003S50 10 50 10 100
2 AEL 1003S60 10 60 10 100
2 AEL 1103 11 50 12 100
2 AEL 1203S50 12 50 12 100
2 AEL 1203S55 12 55 12 100
2 AEL 1203S60 12 60 12 100
2 AEL 1403 14 65 14 120
2 AEL 1603S55 16 55 16 100
2 AEL 1603S60 16 60 16 120
2 AEL 1603S65 16 65 16 120
2 AEL 1603S80 16 80 16 150
2 AEL 1603S100 16 100 16 150
2 AEL 2003S60 20 60 20 100
2 AEL 2003S65 20 65 20 120
2 AEL 2003S80 20 80 20 150
2 AEL 2003S100 20 100 20 150

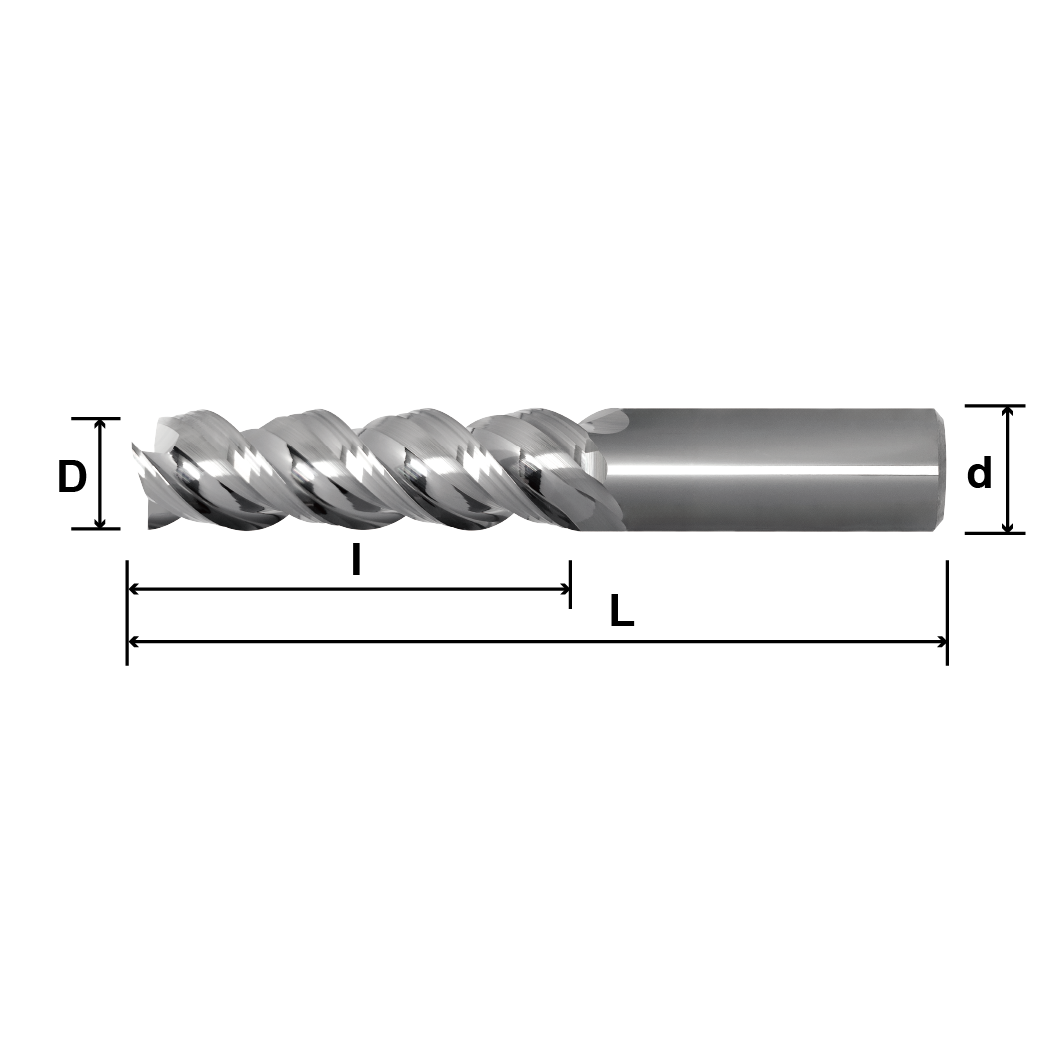

Model No. Diameter D Flute Length I Shank Diameter d Full length L price

Remarks: For other specifications, please call to inquire
